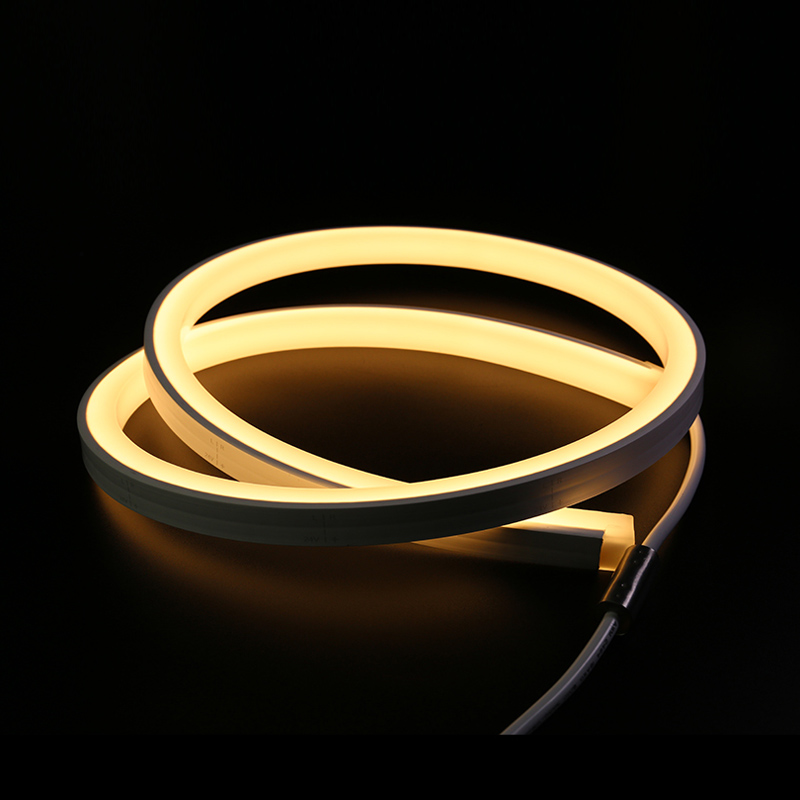

IP68 Neon Pixel LED Strip 3-Side Emitting Luminous surface

Features and Benefits:
▪ 3-side emitting light output and 210° view angle.

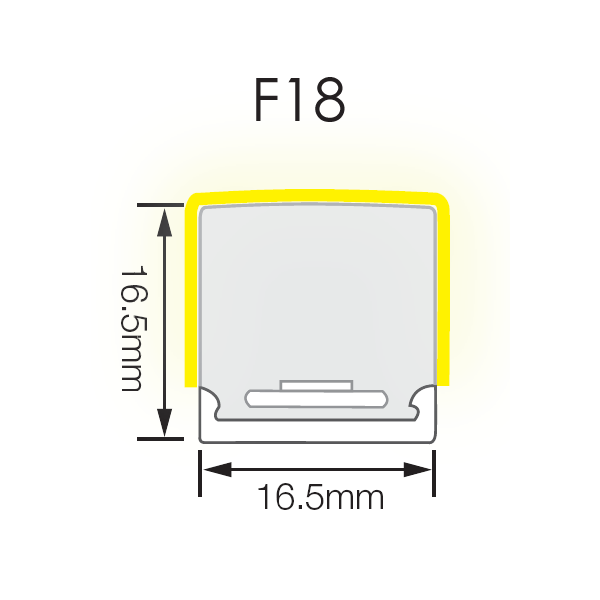

▪ Small size: W16.5*H16.5mm, length can be customized made.
▪ Opal white diffuser with uniform and soft light output and dot free.
▪ Seamless connection support.
▪ Materials: standard PVC, optional silicone.
▪ Top view and vertical bending design and min dia. 120mm bending.
▪ High brightness output up to 880LM/meter (Tunable white).
▪ Optional Light color: Single color, tunable white, RGB, RGBW
▪ Control method for options: PWM, DMX, SPI, pixel chasing & addressable support.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.

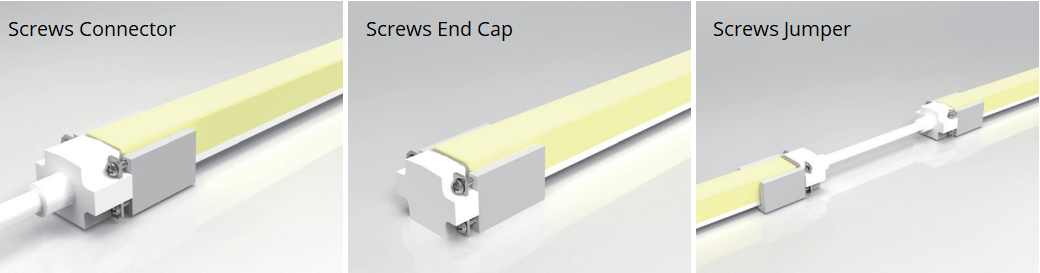

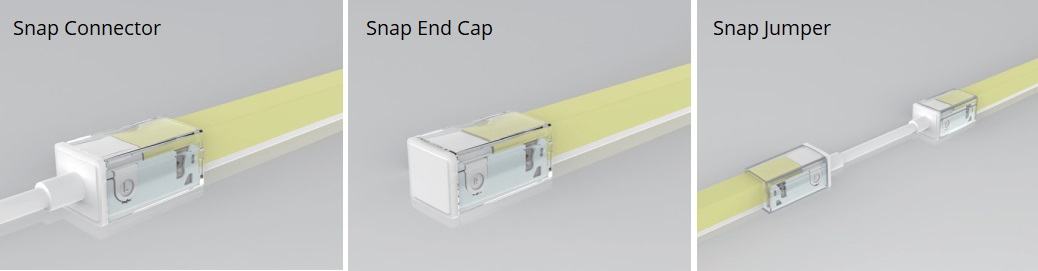

▪ Optional IP67 DIY Snap or screws connector and IP68 Injection moulded connector.
▪ Single end or dual ends power feed cable for neon LED flex.
▪ Cable entry ways for options:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.

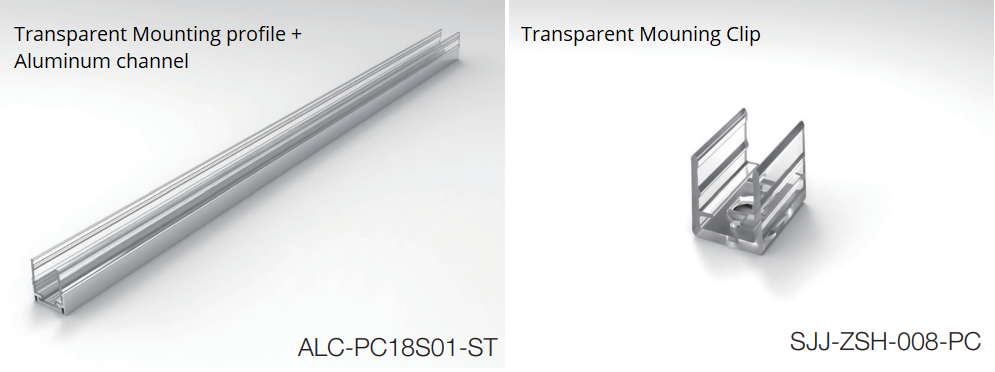

▪ Provides various smart accessories for installation to meet various applications.
▪ Max continuous length per run:8~30meters per run.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2 meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.

Important Notes for neon LED flex when underwater use:
1. Please select injection moulded connector and the depth under water is <2 Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.

Description
Download
Inquire

Technical Parameters for Mono and Tunable white IP68 3 sides Emitting light output F18 Neon LED Flex:

Model Number

(Color Type)

Working

Mode

Light

Color

Working

Voltage

Power

(W/meter)

Luminous Flux (LM/meter)

LED Type

LED Q'ty

(pcs/meter)

CRI

(Ra)

Beam

Angle

Min

Cutting Unit

[cm (inch)]

Max Length Per run

One End

Power Feed

Double Ends

Power Feed

F18-24V-3528-144-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

RD, BL,GN, AM, PK, OR

24VDC

10W/M

400~670LM

3528

144LEDs/M

Ra≥80

210°

8.33cm

(3.28inch)

(12LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

F18-24V-3528-120-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

RD, BL,GN, AM, PK, OR

24VDC

9W/M

228~610LM

3528

120LEDs/M

Ra≥80

210°

10cm

(3.93in)

(12LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

F18-24V-2835-120-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

RD, BL,GN, AM

24VDC

10W/M

540~620LM

2835

120LEDs/M

Ra≥80

210°

10cm

(3.93in)

(12LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

F18-24V-2835-120-CC-XX

(Constant Current & Single Color)

CC,

ON/OFF,

Dimming

2200~6500K,

BL,GN, LY,PK

24VDC

10W/M

530~590LM

2835

120LEDs/M

Ra≥80

210°

5cm

(1.97in)

(6LEDs)

15Meters

(49.2ft)

30Meters

(98.4ft)

F18-24V-2835-120-TW

(Tunable White color)

CV,

ON/OFF,

Dimming

2200k+5000K,

3000K+5000K,

or Customized

24VDC

15W/M

450LM+430LM

2835

120LEDs/m

Ra≥80

210°

10cm

(3.93in)

(12LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

Notes:

1.About light color:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.

The above technical parameters are for 3 sides emitting type F18 single color and tunable white Neon LED flex only, for RGB, RGBW, DMX and SPI versions F18 Neon LED Strip, please inquire us separately to sales@comilandscapelighting.com or sales@comilighting.net.

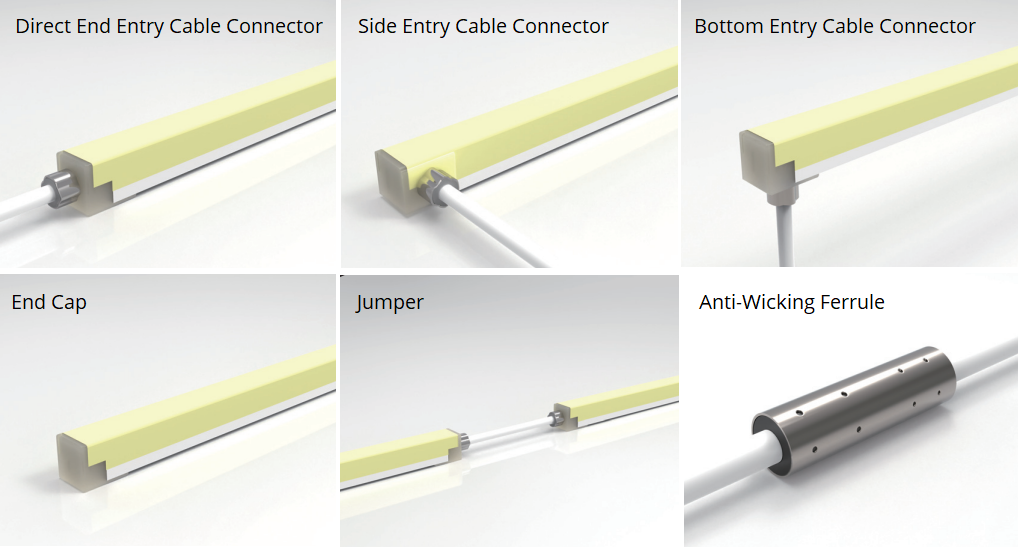

IP68 Injection moulded Connector for Neon LED flex:

Notes:
(1) Factory assembly ONLY;
(2)When the neon LED flex is underwater use, it is strongly advised to select injection moulded type connectors.
(3) Please view important notes about neon LED flex underwater use in this page>> FAQ for COMI Lighting IP68 Waterproof Neon LED flex

submersible injection moulded connectors for neon LED flex with 3-side emitting light output
