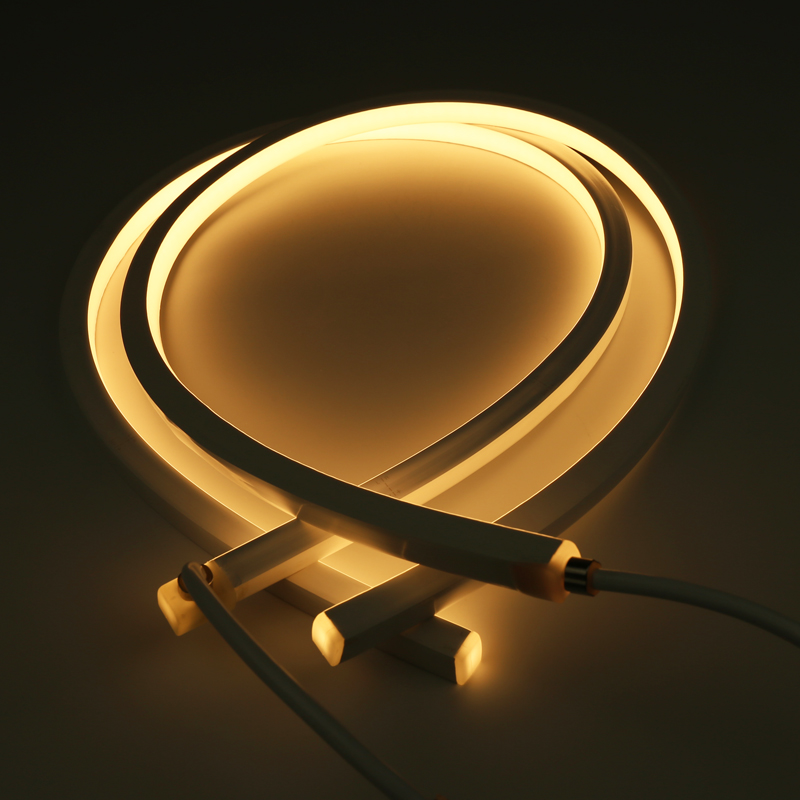

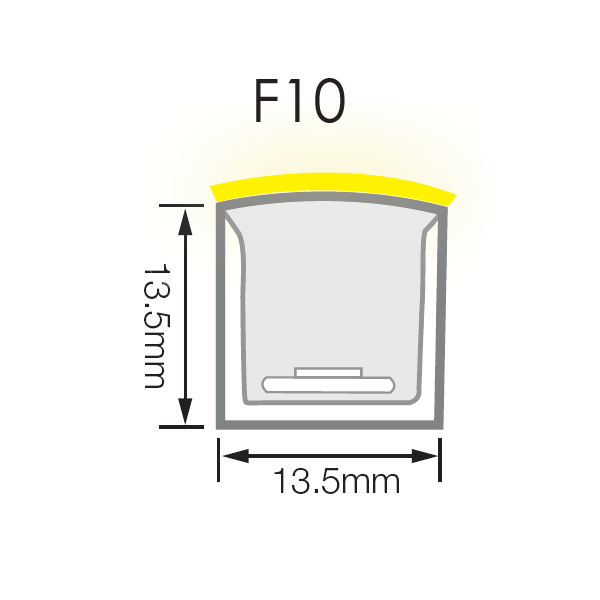

PVC or Silicone Mini Top View Neon Flex 13.5x13.5mm

Features and Benefits:
▪ Top view and vertical bending design and min dia. 80mm bending.
▪ High brightness output up to 500LM/meter.
▪ Seamless connection support.
▪ Single color: 2200-6500K, red, green, blue.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Snap or screws connector and IP68 Injection moulded connector.
▪ Single end or dual ends power feed cable for neon LED flex.
▪ Cable entry ways for options:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.

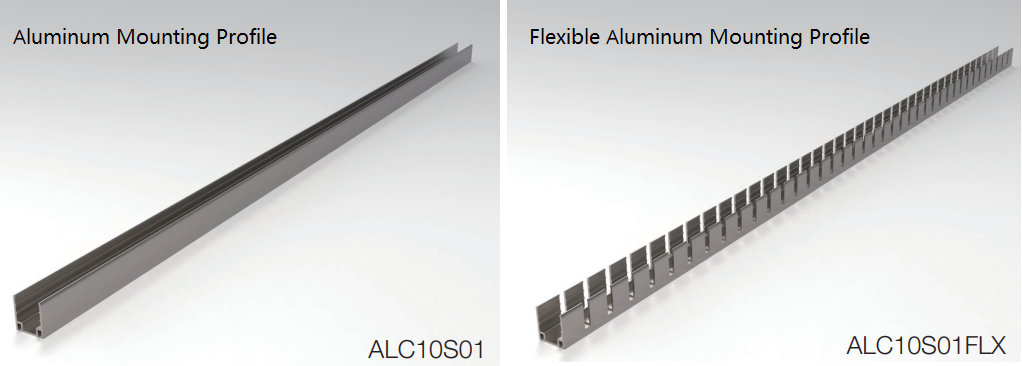

▪ Provides various smart accessories for installation to meet various applications.
▪ Max continuous length per run:
10meters (one end power feed) or 20 meters (Dual ends power feed)
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2 meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.

Important Notes for neon LED flex when underwater use:
1. Please select injection moulded connector and the depth under water is <2 Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.

CE ROHS UL neon LED flex

Description
Download
Inquire

Technical Specifications:

Model Number

(Color Type)

Working Mode

Optional

Color/

Color Type

Working

Voltage

Power

(W/M)

Luminous Flux (LM/meter)

LED

Type

LED Q'ty

(pcs/M)

CRI

(Ra)

Beam

Angle

Min

Cutting

Unit

Max Continuous Length

One End Power Feed

Double Ends Power Feed

F10-24V-2835-144-XX

(Single Color)

2200~6500K,

RD, BL,GN

24VDC

10W/M

340~500LM

(White color)

2835

144LEDs/m

Ra≥80

120°

8.33cm

(3.28in)

(12LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

Notes:

1.About light color of IP68 Waterproof Neon LED tape :
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.

IP68 Injection Moulded Connectors for Neon Strip LED Light:

F17 neon LED flex injection molded connector types
