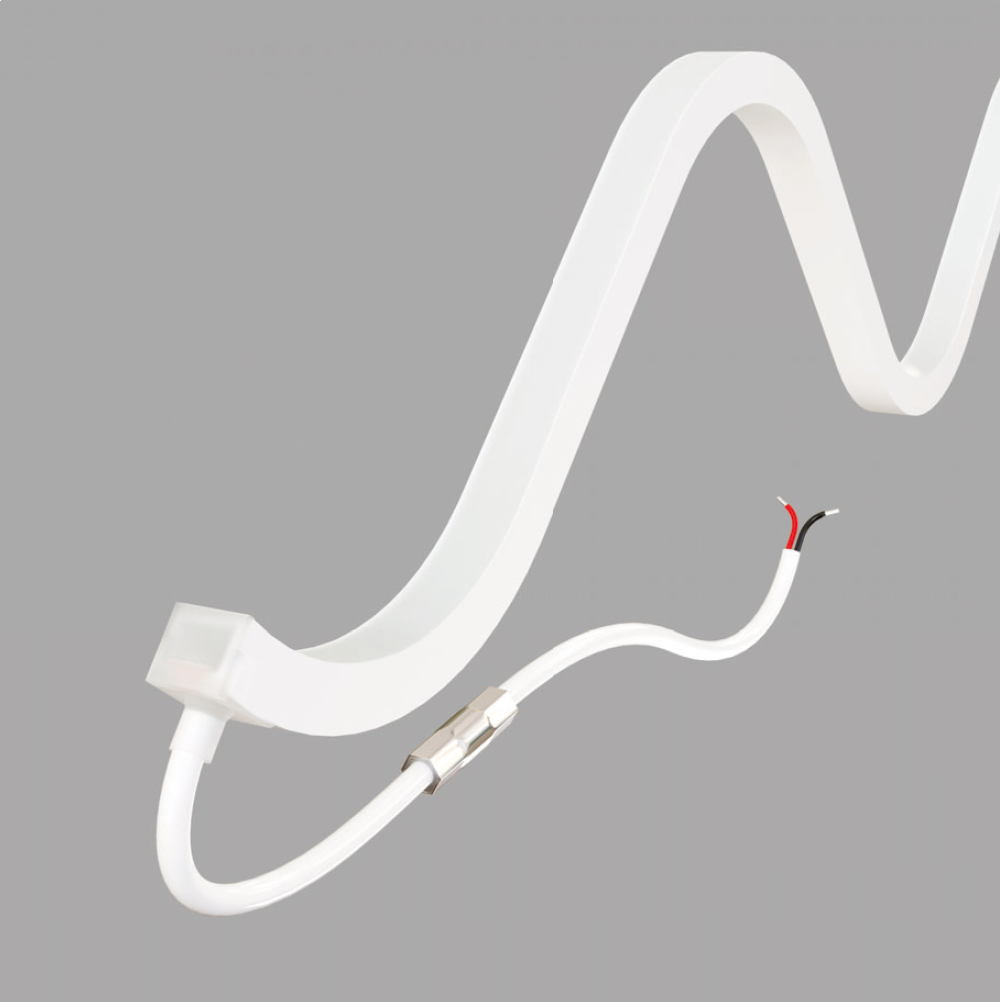

Top View Silicone Neon LED Flex SF31 features a 30mm ultra-wide luminous surface and vertical bending design, delivering smooth, dot-free illumination for professional high-end architectural and landscape lighting projects.With IP68 waterproof construction, premium SMD LEDs, advanced optical silicone diffusion, and long continuous run capability, this neon LED flex is engineered for facade lighting, outdoor linear lighting, and architectural contour illumination.Designed for demanding outdoor environments, it provides exceptional durability, visual impact, and design flexibility for professional lighting applications.
Key Features of Silicone Neon LED Flex

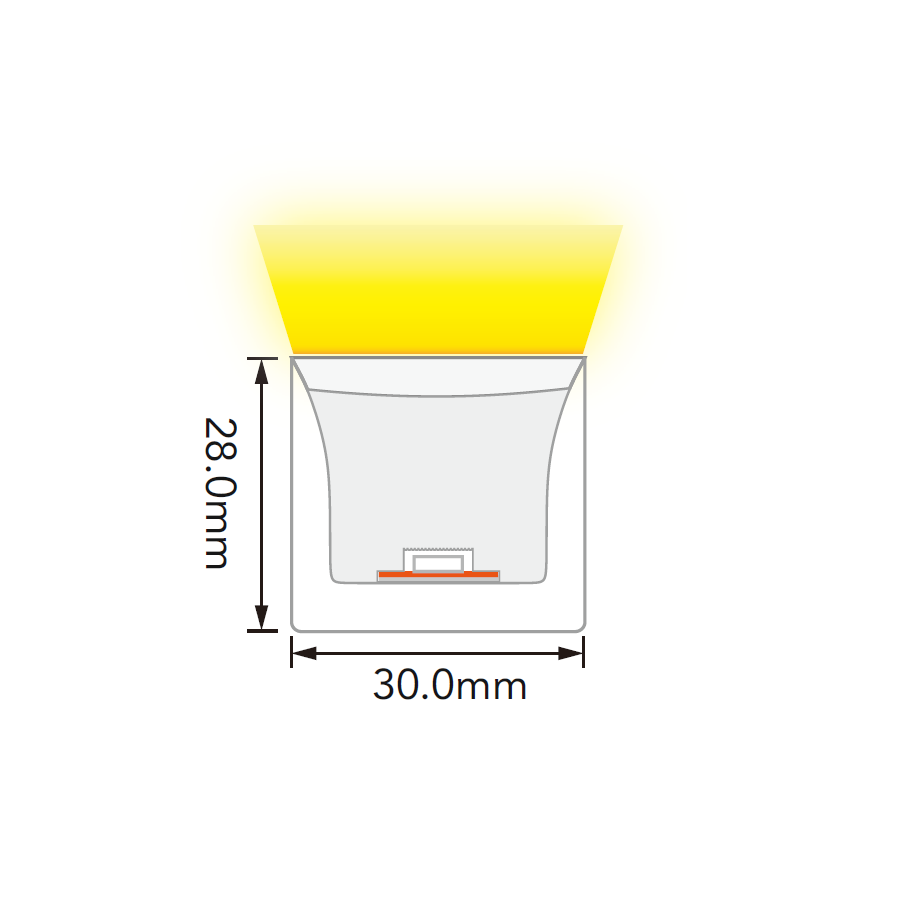

Extra-Wide 30mm Luminous Surface
• 30mm top-view emitting surface for bold, uniform linear light
• Completely dot-free lighting effect, even at close viewing distances
• Ideal for architectural outlines and large-scale facade lighting

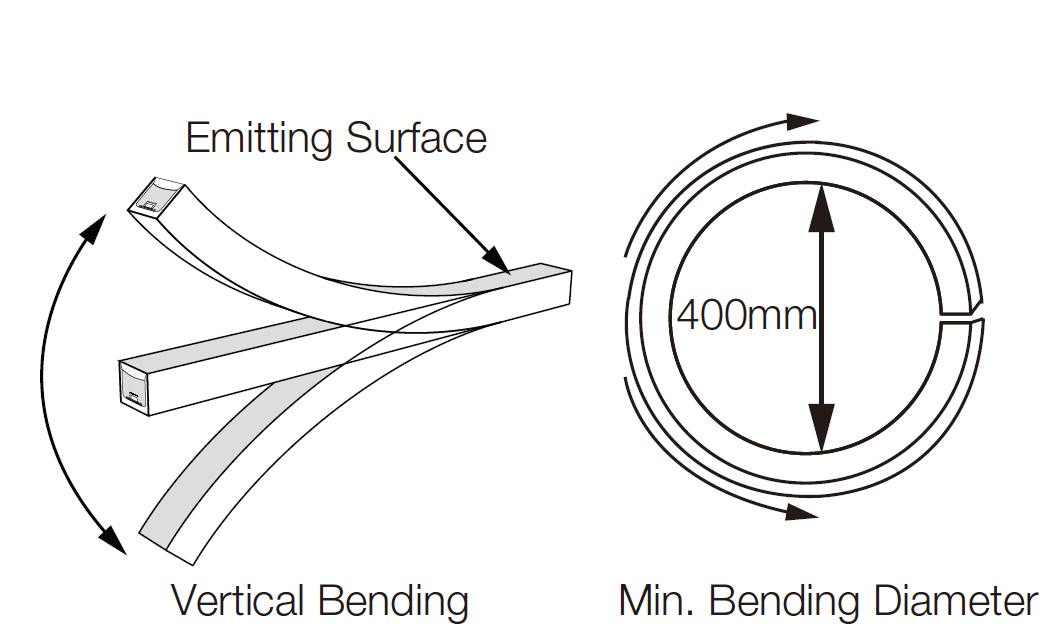

Vertical Bending Neon LED Flex
• Optimized for vertical bending installations
• Minimum bending diameter: 400mm
• Perfect for curves, building edges, and architectural shapes
High-Efficiency LED Options
• 15W/m – 5050 SMD LEDs (84 LEDs/m) for high-brightness projects
• 10W/m – 3528 SMD LEDs (144 LEDs/m) for energy-efficient illumination
• High-quality LEDs ensure color consistency and long lifespan
IP68 Waterproof & Outdoor Rated
• IP68 rated silicone neon LED flex
• Submersible up to 2 meters
• Suitable for wet locations, coastal areas, and extreme weather
Operating temperature: -40°C to +55°C (Silicone)
• Long Run Length, Low Voltage Drop
• Single power feed: up to 8 meters
• Double power feed: up to 16 meters
• Stable 24V DC system for safe outdoor installation

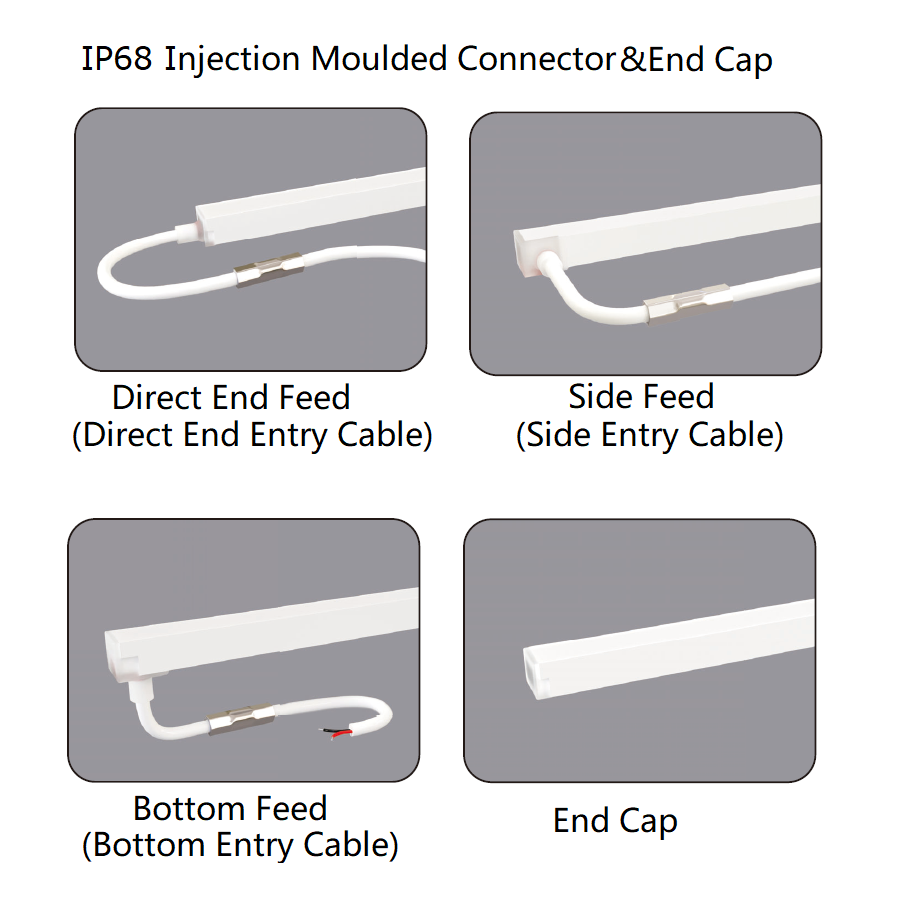

Flexible Power Feed Options
• Direct end feed
• Side feed
• Bottom feed

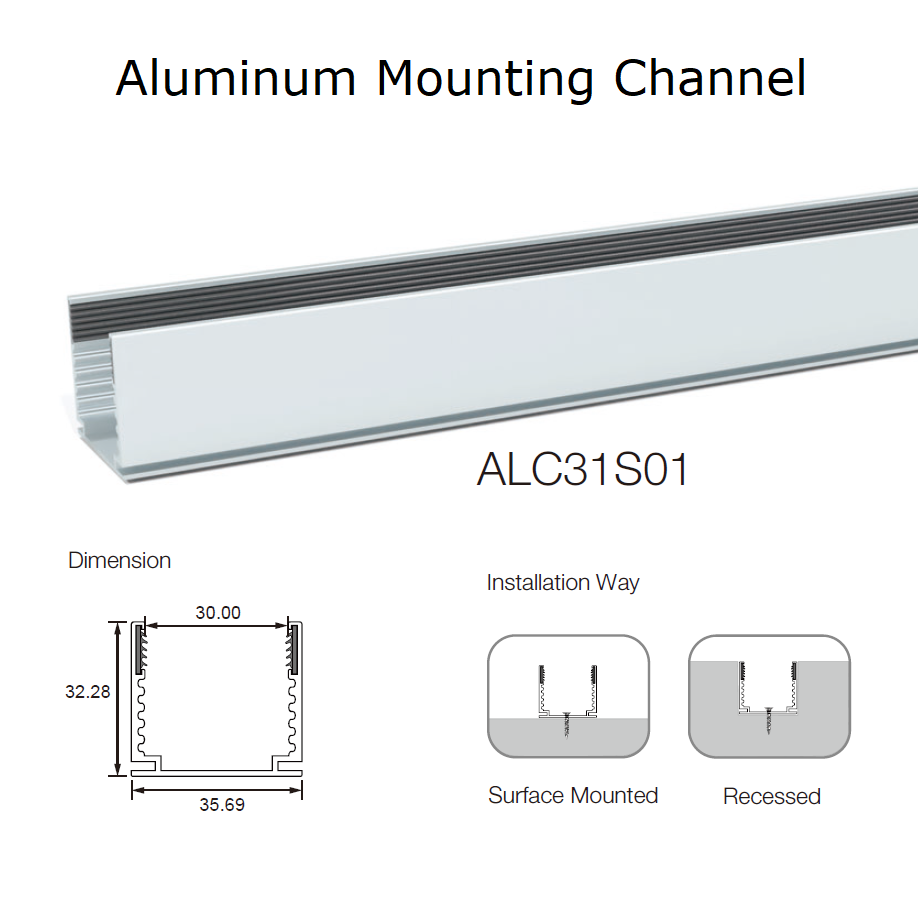

Easy integration with architectural mounting systems
Benefits of Large Luminous surface Neon LED for Architectural Lighting Projects
High Visual Impact
Wide luminous surface enhances building presence and nighttime visibility.
Maximum Design Freedom
Vertical bending structure supports complex architectural contours.
Long-Term Reliability
Up to 70,000 hours L70 @ 25°C, reducing maintenance costs.
Professional-Grade Performance
CRI options >80 / >90 meet architectural lighting quality standards.
Reduced Installation Time
Long continuous runs and flexible power feeds simplify wiring and installation.
Safe & Energy Efficient
Low-voltage 24V DC operation for outdoor and public spaces.
| Item Number |
Working
Mode
|
Color or CCT(K) | Light Source | Input Voltage |
Power
(W/m)
|
Luminous Flux
(LM/meter)
|
Mini. Cutting Unit(mm) | Max Length Per Run(Meters) |
IK
Rate
|
IP
rate
|
|
| Single Feed | Double Feed | ||||||||||
| SF31-24V-3528-144-XX |
CV,
PWM
|
2200~6500K,
Red, Green, Blue,yellow,
pink, orange
|
3528
SMD LED,
CRI80+/90+,
144pcs/meter
|
24VDC | 10W/m |
740lm/M(5700K)
692lm/M (3000K)
|
83.3mm
(12LEDs)
|
10meters | 20Meters | IK08 | IP68 |
| SF31-24V-5050-84-XX |
CV,
PWM
|
2200~6500K,
Green, Blue, yellow, pink
|
5050
SMD LED,
CRI80+/90+,
84pcs/meter
|
24VDC | 15W/m |
1266lm(6500K)
1172lm/m(3000K)
|
83.3mm
(7LEDs)
|
8Meters | 16Meters | IK08 | IP68 |
Architectural facade lighting
Outdoor linear lighting systems
Landscape and pathway lighting
Building outline and contour lighting
Bridges, canopies, and structural accents
Hotels, resorts, and luxury residential exteriors
Urban landmarks and city beautification projects
Signage borders and decorative light lines
Contact us for project consultation, samples, and lighting design support.
