The COMI LIGHTING IP68 SUS316 stainless Steel Recessed LED Underwater Pool lights made of SUS 316L# stainless steel is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
Features and Benefits:

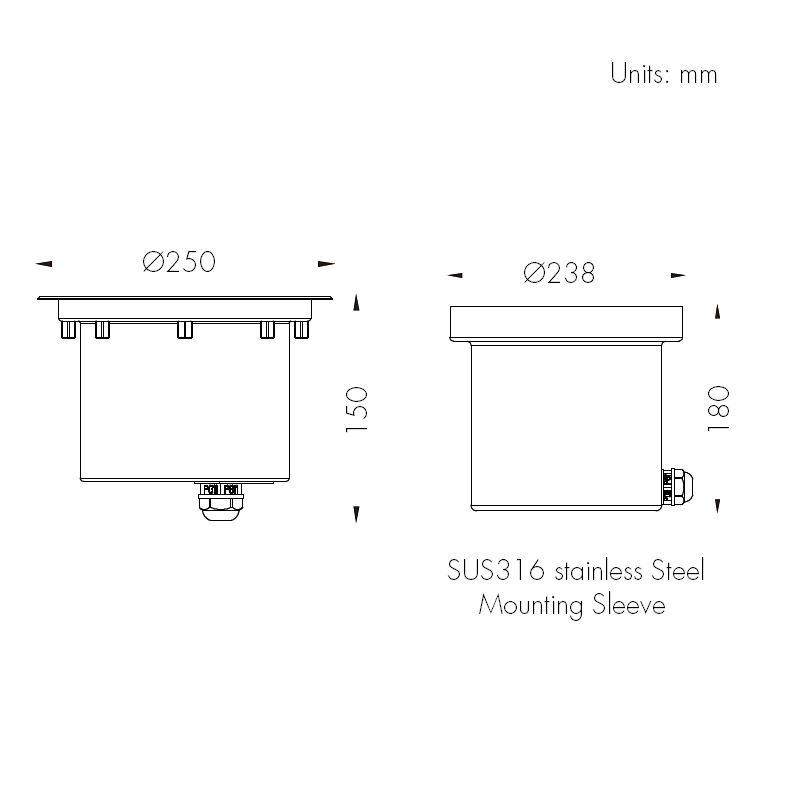

• Lamp Body Size: Φ250xH150mm.
• Light source:

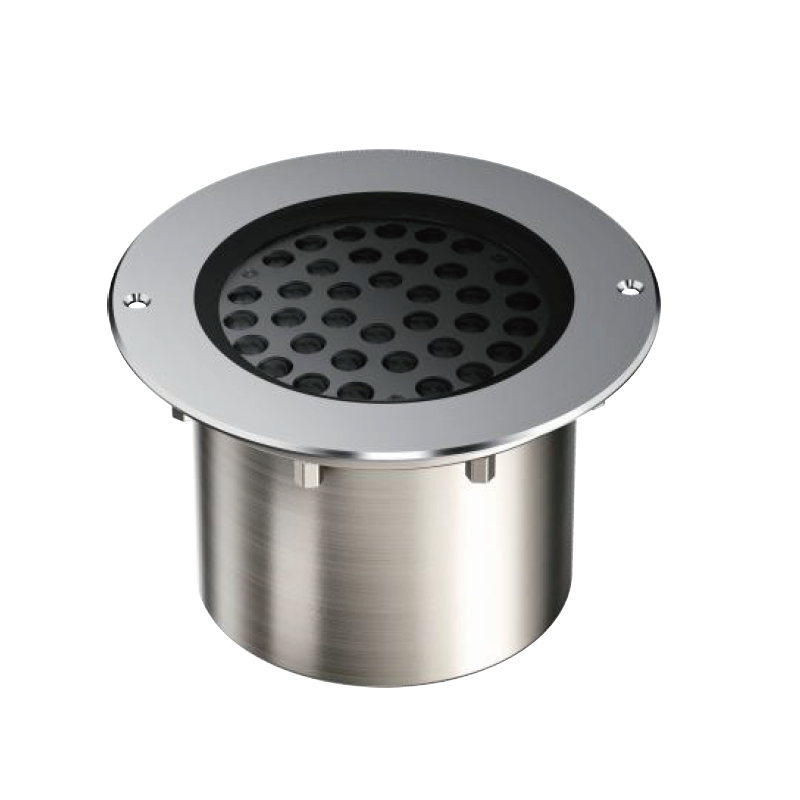

(1) SMD LED version: 24pcsx2W single/or 3W RGB 3-in-1 LED/4W RGBW 4-in-1 LED.

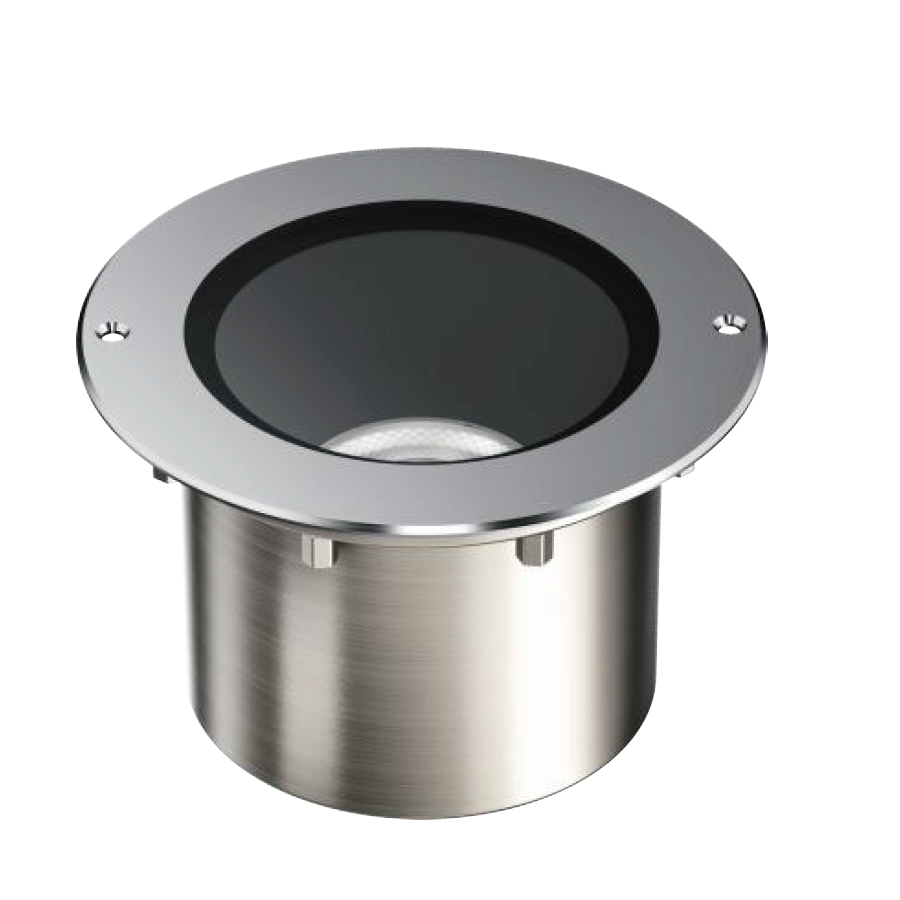

(2) COB LED Version:1piece 45W CREE COB LED.
• Input voltage: 24Vdc operating voltage.
• Power Consumption: 45W or 48W (Mono), 60W(RGB 3-in-1), 80W (RGBW 4-in-1)
• Completely stainless steel SUS 316 L# housing & accessory
• Standard non-dimmable, Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable.
• IP68 waterproof,underwater installation in depth less than 1meter.
• Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
• Mounting Part: SUS 316 stainless steel mounting sleeve included.
• Warranty: 2 Years warranty.
Warning notes for comi landscape lighting's IP68 LED pool lightWarning:
• Water must be allowed to go inside and outside sleeve freely without leaking from the other side.
• This IP68 SUS 316 L# stainless steel luminaire must be installed underwater to prevent the light from burning up because of over-heating.
Material Specifications
|
Front cover&Housing |
Molding shaped sus 316 L# stainless steel housing |
|
Gasket |
EPDM gasket |
| Window glass |
Step tempered glass. T=10mm |
|
Glass pressure capacity |
Full area=5012KGs |
| Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper with nickel -coated |
| PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
| Driver |
Constant current output ▪ Single color LED=2-circuit output ▪ RGB 3in1 LED=6-circuit output |
|
Application environment |
Temperature of water between -20℃~40℃ less than 1 meter depth. |
|
Electrical connection |
▪ 1x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single color) ▪ 1x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB) ▪ 1x cable 3meters H05RN-F 5x0.75mm² to open wires (for RGB DMX, Optional) (V+/V-/DMX+/DMX-/GND) |
| Installation by |
PVC plastic mounting sleeve (included) |
| Dimmable or DMX512 |
▪ Standard non-dimmable. ▪ Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable support. |
Technical Specification
Notes: Specification is subjected to change without notice.
Part
Number
Light
Source
CRI
(White color only)
Selected
Lens
Degree (Θ1/2)
Input
Voltage
(Vdc)
Typical
Power
Consumption(W)
Typical
Luminance(lm)
IK
Rate
B4BF0150
1×50W
CREE COB LED
Ra>80
15°, 24°,36°, 60°
24VDC
45W
Cool
white=4275LM
Warm white=3548LM
10
B4BF2456
24×1W
Osram or Cree Single color LED
Ra>80
10°, 25°, 40°, 60°,
80°,10×45°, 25×45°
24VDC
24W
Cool
white=1728LM
Warm white=21434LM
10
B4BF2457
24×2W
Osram or Cree Single color LED
Ra>80
10°, 25°, 40°, 60°,
80°,10×45°, 25×45°
24VDC
48W
Cool
white=3456LM
Warm white=2868LM
10
B4BF2418
24×2.5W
RGB 3-in-1 Full color LED
-
25°, 40°, 60°,80°,
10×45°, 25×45°
24VDC
60W
1500LM
10
B4BF2424
24×3.5W RGBW 4-in-1 Full color LED
-
25°, 40°, 60°,80°,
10×45°, 25×45°
24VDC
80W
2800LM
10
