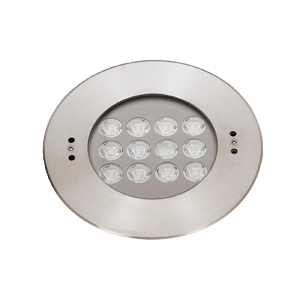

B4FB1857 FB4ZB1818 18x2W IP68 Wall Recessed LED Pool Lights

The COMI LANDSCAPE LIGHTING B4FB-series IP68 Wall Recessed LED Underwater Pool lights made of SUS 316 L# stainless steel is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Features and Benefits:
▪  Φ250xH79mm.
▪  Light source: 12x2W Osram or 3W RGB 3-in-1 LED.
▪  24Vdc operating voltage.
▪  Power Consumption: 45.6W (Mono), 52W(RGB 3-in-1)
▪  Completely stainless steel SUS 316 L# housing & accessory
▪  Symmetrical light output .
▪  Standard non-dimmable, Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable support.
▪  IP68 waterproof,underwater installation in depth less than 1meter.
▪  Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪  PVC plastic mounting sleeve included.
▪  2 Years warranty.

Warning notes for comi landscape lighting's IP68 LED pool lightWarning:
▪  Water must be allowed to go inside and outside sleeve freely without leaking from the other side.
▪  This IP68 SUS 316 L# stainless steel luminaire must be installed underwater to prevent the light from burning up because of over-heating.



B4FB1857 (Mono)/B4FB1818(RGB) 18x2W or 3W IP68 Symmetrical Wall Recessed LED Pool Lights
Completely stainless steel SUS 316L# housing & accessory

 COMI Landscape lighting_B4FB and C4FB series LED pool lights


Material Specifications

Front cover&Housing
Molding shaped sus 316 L# stainless steel housing
Gasket
EPDM gasket
Window glass Step tempered glass. T=10mm
Glass pressure capacity
Full area=5012KGs
Lens Optical lens, efficiency≥85%
Cable gland
IP-68 PG-11 copper with nickel -coated
PCB Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk
Driver Constant current output
▪ Single color LED=2-circuit output
▪ RGB 3in1 LED=6-circuit output
Application environment
Temperature of water between -20℃~40℃ less than 1 meter depth.
Electrical connection
▪  1x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single color)
▪  1x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB)
▪  1x cable 3meters H05RN-F 5x0.75mm² to open wires (for RGB DMX, Optional)
   2 cores: Power +/-;
   2 cores: DMX +/-;
   1 core: Ground.
Installation by PVC plastic mounting sleeve (included)
Dimmable or DMX512 ▪  Standard non-dimmable.
▪  Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable support.




Technical Specification

Part Number
Light Source
CRI
(White color)
Lens
Selected Lens
 Degree (Θ1/2)
Input Voltage
 (Vdc)
Typical Operating
 Current(mA)
Typical Power
Consumption(W)
Typical
Luminance(lm)
IK Rate
(What is IK Rating?)
B4FB1857
18×2W Osram
Single color
Ra>80
B32
30
24VDC
1900
45.6
Cool white=2967
Warm white=2521
10
B4FB1818
18×2W
RGB 3-in-1
Full color
-
B8
25
24VDC
R=630
G=770
B=770
52
968
10
C4FB1857
18×2W Osram
Single color
Ra>80
C8
45/35
24VDC
1900
45.6
Cool white=2965
Warm white=2261
10
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) and RGB
2. Specifications are subjected to change without notice.




Outline Diemsional Drawing (Units:mm)


COMI Landscape lighting_B4FB and C4FB series LED pool lights dimension



LED and Lens

LED and lens for B4FB and C4FB LED Pool lights_COMI Lansacape lighting

Application

COMI Landscape lighting_IP68 Wall recessed led pool light application
