The COMI LIGHTING IP68 SUS316 stainless Steel Recessed LED Underwater Pool lights made of SUS 316L# stainless steel is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
Features and Benefits:

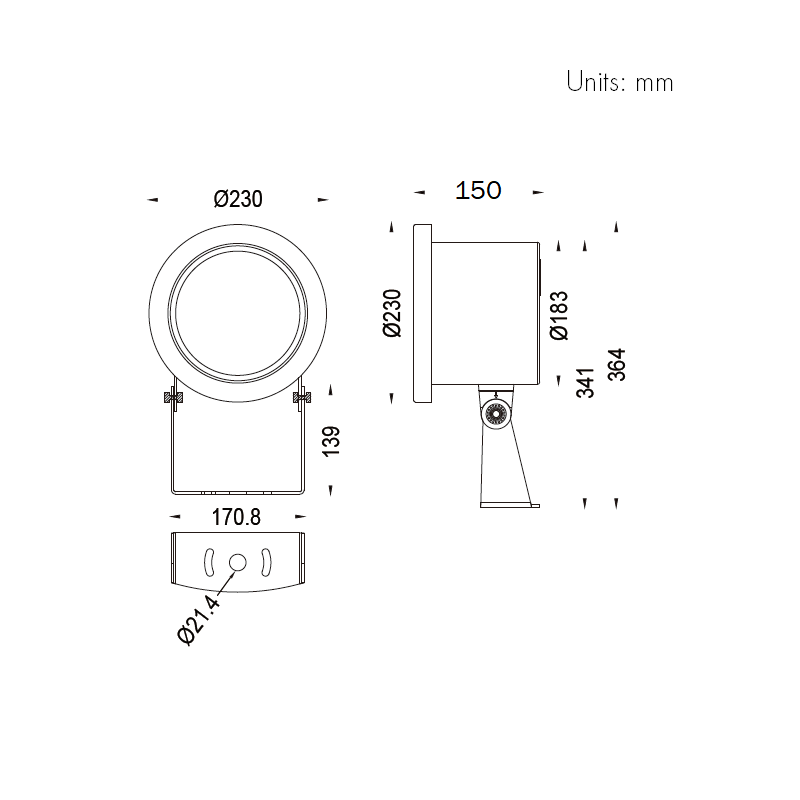

• Lamp Body Size: Φ230xH150(H364)mm.
• Light source:
(1) SMD LED version: 24pcsx2W single/or 3W RGB 3-in-1 LED/4W RGBW 4-in-1 LED.
(2) COB LED Version:1piece 45W CREE COB LED.
• Light source, Optical lighting accessory and Light efficiency:

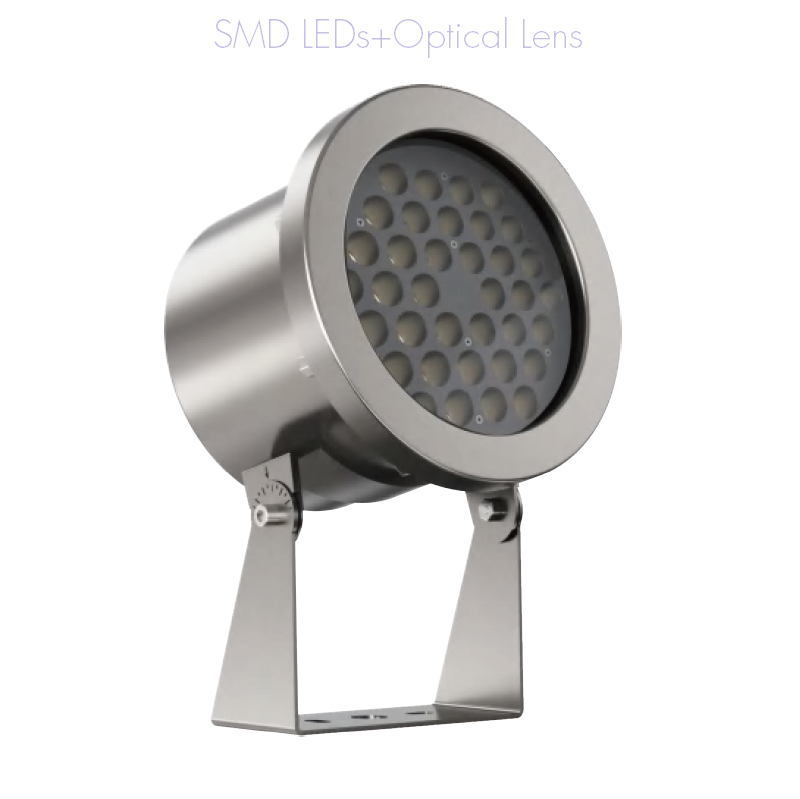

(1) SMD LEDs+Optical Lens: 60~72LM/W

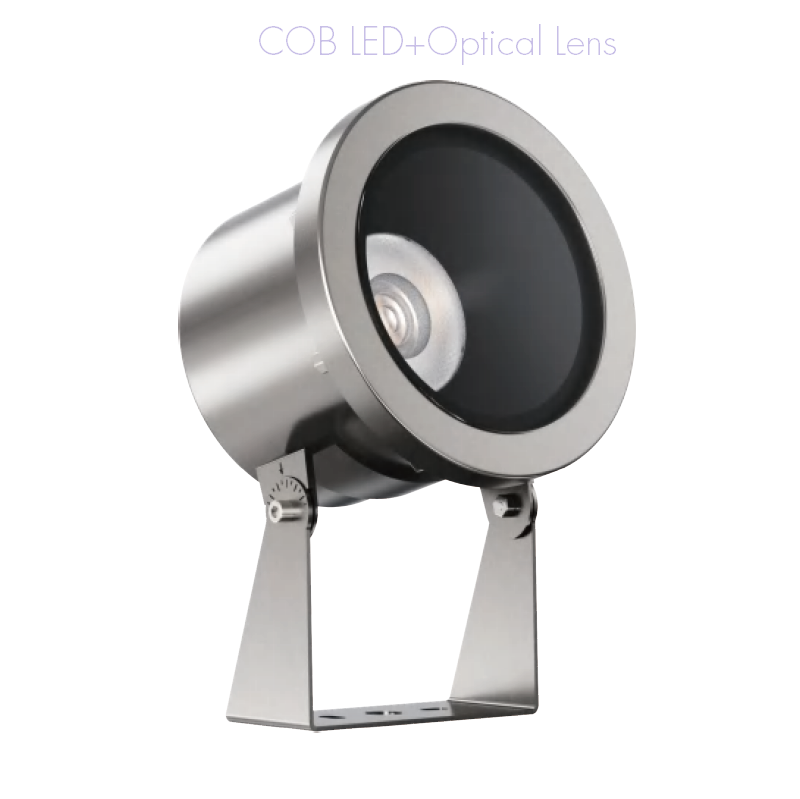

(2) COB LED+Optical Lens: 80~95LM/W

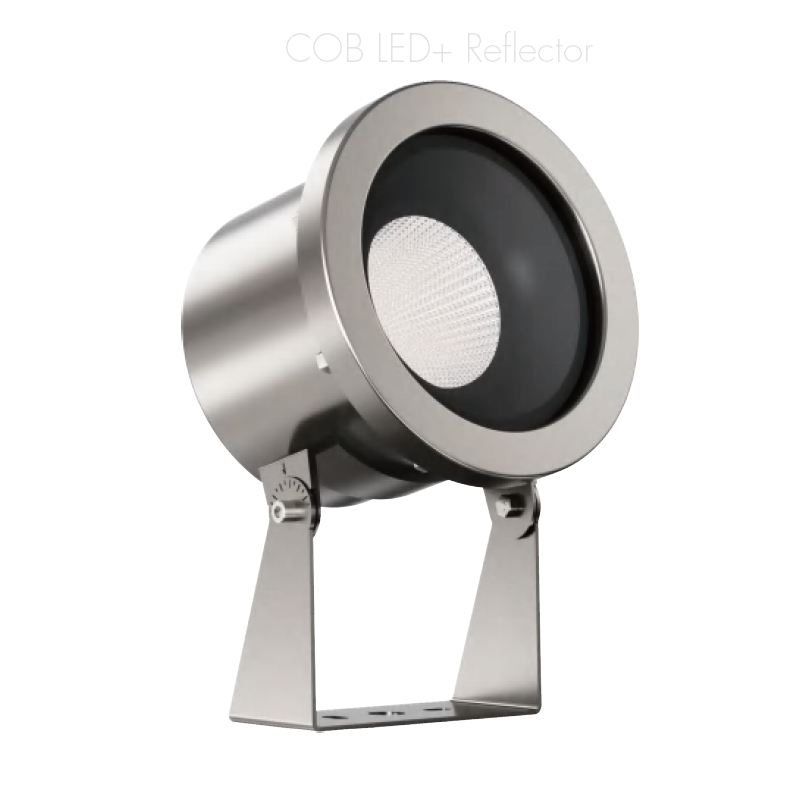

(3) COB LED+Reflector: 75~95LM/W
• Input voltage: 24Vdc operating voltage.
• Power Consumption: 45W or 48W (Mono), 60W(RGB 3-in-1), 80W (RGBW 4-in-1)
• Completely stainless steel SUS 316 L# housing & accessory
• Standard non-dimmable, Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable.
• IP68 waterproof,underwater installation in depth less than 1.5meters.
• Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
• Mounting Part: 316 stainless steel U-shaped Bracket(included)

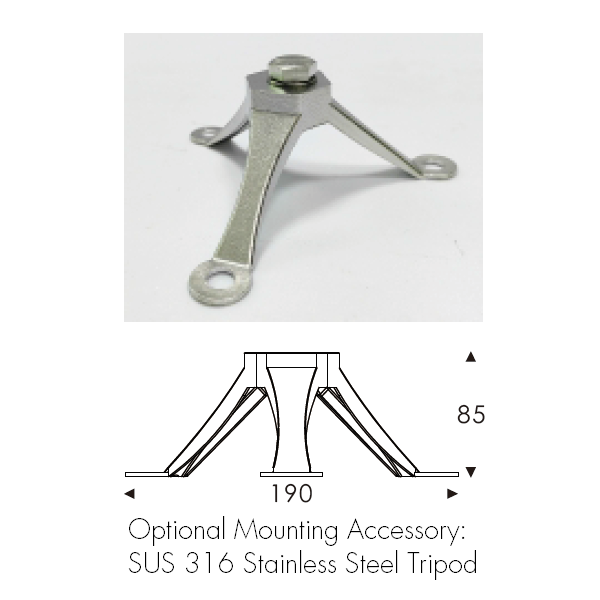

• Optional mounting accessory:316 stainless steel tripod
• Warranty: 2 Years warranty.
Warning notes for comi landscape lighting's IP68 LED pool light:
• This IP68 SUS 316 L# stainless steel luminaire must be installed underwater to prevent the light from burning up because of over-heating.
Material Specifications
|
Front cover&Housing |
Molding shaped sus 316 L# stainless steel housing |
|
Gasket |
EPDM gasket |
| Window glass |
Step tempered glass. T=10mm |
|
Glass pressure capacity |
Full area=5012KGs |
| Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper with nickel -coated |
| PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
| Driver |
Constant current output ▪ Single color LED=2-circuit output ▪ RGB 3in1 LED=6-circuit output |
|
Application environment |
Temperature of water between -20℃~40℃ less than 1 meter depth. |
|
Electrical connection |
▪ 1x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single color) ▪ 1x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB) ▪ 1x cable 3meters H05RN-F 5x0.75mm² to open wires (for RGB DMX, Optional) (V+/V-/DMX+/DMX-/GND) |
| Installation by | U-shaped Bracket (for surface mounting on Wall/ground/ceiling) |
| Optional Accessory | SUS 316 stainless Steel Tripod |
| Dimmable or DMX512 |
▪ Standard non-dimmable. ▪ Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable support. |
Technical Specification
|
Part Number
|
Light Source
|
CRI
(White color only)
|
Selected Lens
Degree (Θ1/2)
|
Input Voltage
(Vdc)
|
Typical Power
Consumption(W)
|
Typical Luminance(lm)
|
IK Rate
|
| B5BF0150 | 1×50W CREE COB LED | Ra>80 |
15°, 24°,36°, 60°
|
24VDC | 45W |
Cool white=4275LM Warm white=3548LM |
10 |
| B5BF2456 | 24×1W Osram or Cree Single color LED | Ra>80 |
10°, 25°, 40°, 60°,
80°,10×45°, 25×45°
|
24VDC | 24W |
Cool white=1728LM Warm white=21434LM |
10 |
|
B5BF2457
|
24×2W Osram or Cree Single color LED |
Ra>80
|
10°, 25°, 40°, 60°,
80°,10×45°, 25×45°
|
24VDC
|
48W
|
Cool white=3456LM
Warm white=2868LM
|
10
|
|
B5BF2418
|
24×2.5W RGB |
-
|
25°, 40°, 60°,80°,
10×45°, 25×45° |
24VDC
|
60W
|
1500LM
|
10
|
|
B5BF2424
|
24×3.5W RGBW 4-in-1 Full color LED
|
-
|
25°, 40°, 60°,80°,
10×45°, 25×45° |
24VDC
|
80W
|
2800LM | 10 |
Notes: Specification is subjected to change without notice.
