The COMI Landscape lighting's D1WR-series LED wall light & Stair light is designed for wall or step integration and offers various design possibilities in architectural illumination.
Features and benefits:
▪ Rectangle front cover
▪ 110-120V or 220-240Vac 50/60Hz input.
▪ Light source: 48pcs 20-25LM 2835SMD LED.
▪ Lighting fixture luminous flux: 720-850LM (Original LEDs total: 960~1200LM).
▪ CRI(Ra)>80 (for 2200-6500K only).
▪ Color: 2200-6500K, Red,Green,Blue,Yellow and etc..
▪ Honey comb-type clear tempered glass light window.
▪ Optional Lamp body color: grey, optional black, white, Silver.

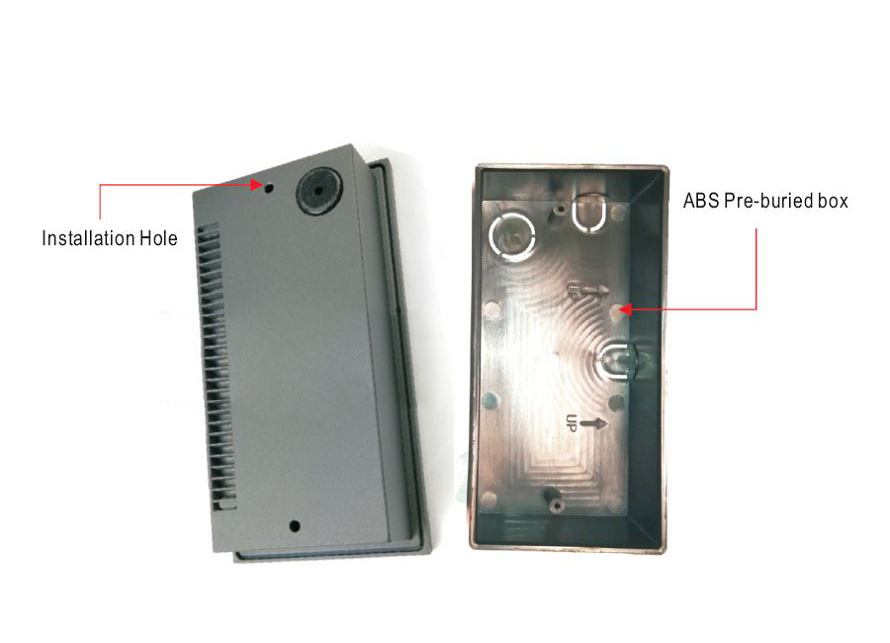

▪ Easy wall recessed install by mounting sleeve.
▪ ABS mounting sleeve(also named Pre-buried box) included.
▪ IPclassification: IP54.
▪ 2 Years warranty.
Material Specifications:
Housing |
12 Die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |
Front Cover |
12 Die-casting aluminum PT877U liquid coated , T=20-30μm Adhesion of ISO class 1/ASTM class 4B |
Gasket |
Molding shaped silicone seal |
LED | 48pcs 2835 SMD LED, 20-25LM/LED |
Driver |
Tridonic Constant voltage output |
Operating Temperature |
-20℃~40℃ |
Mounting Sleeve(Incl.) | ABS |
Technical Specifications:
Item Number
|
Light Source
|
CRI(Ra)
(White color) |
Lens
|
Selected Lens
Degree (Θ1/2) |
Input Voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
IK |
D1WR4807
|
48× 2835 SMD |
Ra>80
|
/
|
120°
|
120/240
|
120V=90
240V=45 |
120V=10
240V=10 |
Cool white=810
Warm white=725 |
08
|
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.)
2. Specifications are subjected to change without notice.
