F21 RGB or RGBW DMX or SPI Domed Shape IP68 Neon LED Flex

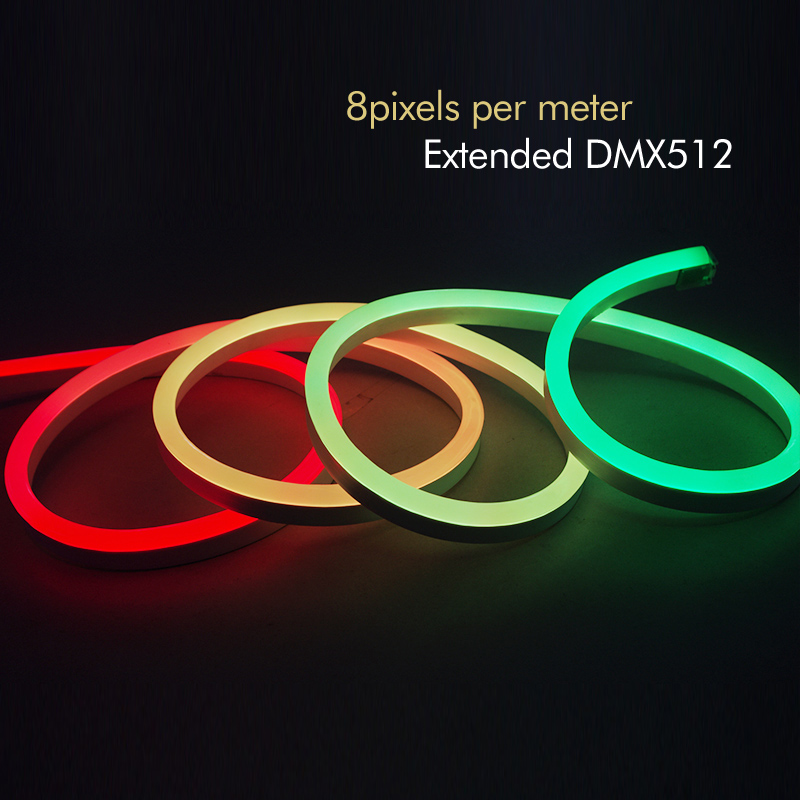

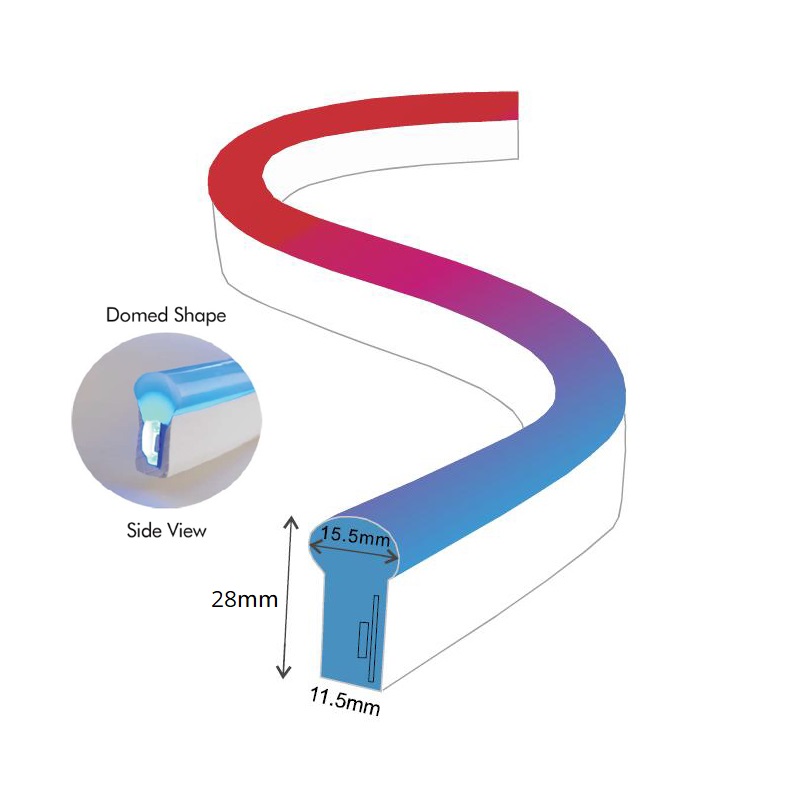

F21-DMX or F21-SPI is a series of domed shape dynamic neon LED flex with 8pixels/m or 10pixels/m which is programmable, addressable and controllable by DMX or SPI controller, and this IP68 flexible dot free line neon LED flex with a W15(11.5)×H28mm cross section. Opal polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gases and protection against abrasion. Horizontal bending only, with radius of 8mm excellent solution for indoor / outdoor organic facade accent lighting or decorative applications requiring IP67 even IP68 ingress.Fully controllable by DMX or SPI.

Features and Benefits:
▪ Domed shape opal white diffuser and 270° beam angle.
▪ with size in W15(11.5)*H28mm, length can be customized made.
▪ Side view emitting light enables uniform,soft and dot free light output.
▪ Horizontable bending design and min dia. 80mm bending.
▪ Light color available: Single color, tunable white, RGB, RGBW
▪ Control methods: DMX or SPI for options(select one of them for the product):
(1) Signal Parallel Protected, DMX512 Signal Compatible,DMX Address Writable.

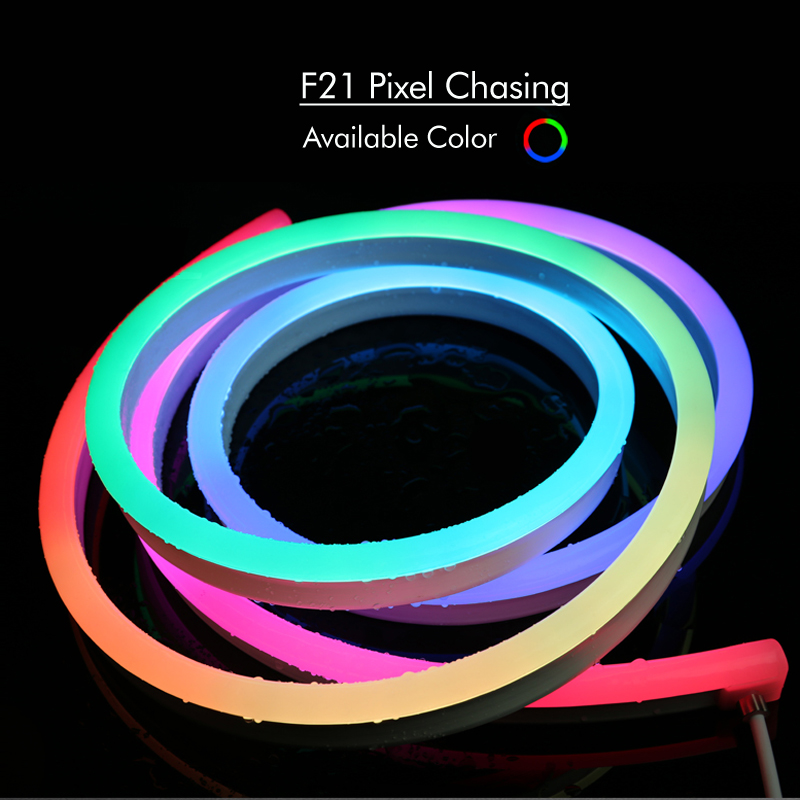

(2) 8pixel/m or 10pixels/m, Each pixel of LED can be programmable or writable.
(3) By using our specialized control system, each output port support 512 pixels.
(4) Programmable to various color changing effects to cater to different applications
▪ Connector type:
(1) IP67 DIY screws type connector; (2) IP67 Snap type connectors;
(3) IP68 Injection moulded connector.
▪ Entry cable way for neon LED flex:
(1)Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.
▪ Provides various smart accessories for mounting and installation.
▪ Max continuous length per run: 7~16Meters.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.

Important Note:
If the neon LED flex is underwater used, please note that:
1. Please select mould injection connector and the depth of underwater is <1.5Meters.
2. Used in swimming pool or other fresh water pool only, CAN NOT be used in sea water.

Description
Download
Inquire

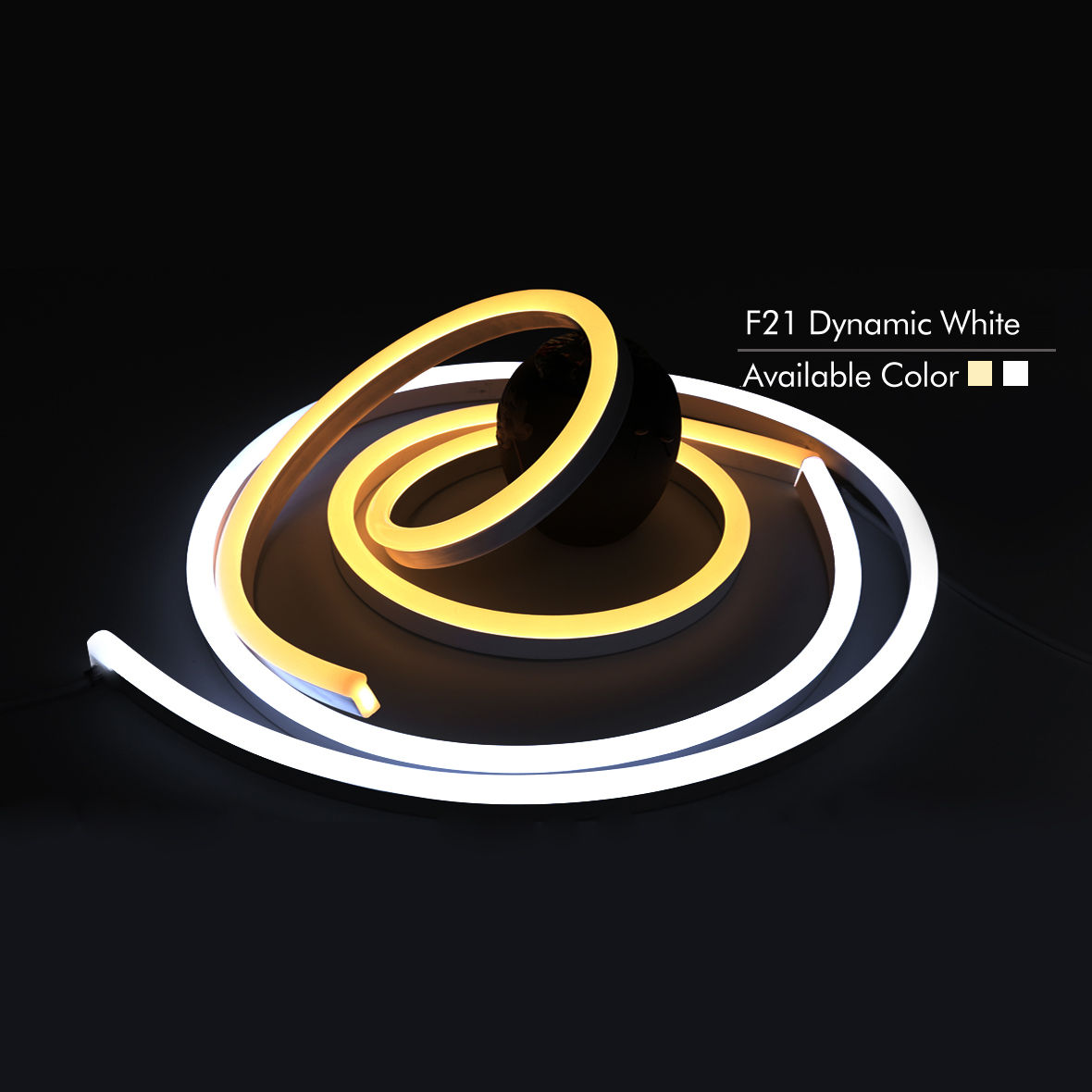

Technical Specifications for F21 Digital Pixel Domed Neon LED flex DMX or SPI Controllable(Tunable white is available):

Model Number

(Color Type)

Working Mode Support

Optional

Color/

Color Type

Working

Voltage

Power

(W/meter)

Luminous Flux (LM/meter)

LED Type

LED Q'ty

(pcs/meter)

CRI

(Ra)

Beam

Angle

Min

Cutting Unit

[cm (inch)]

Max Continuous Length Per run

Control

Mode

Type

Pixel/Meter

One End

Power Feed

Double Ends

Power Feed

F21-24V-5050-56-DMX3-RGB

(4-wire DMX RGB)

DMX

(RS485)

UCS512

(4-Wire)

8Pixels/M

RGB

Full Color

24VDC

12W/M

R:29LM; G:91LM; B:16LM; RGB:125LM

5050

RGB

3-IN-1 LED

56LEDs/m

270°

10cm

(3.93in)

(6LEDs)

7Meters

(22.96ft)

14Meters

(45.93ft)

F21-24V-5050-56-DMX3-XX

(4-wire DMX single color)

DMX

(RS485)

UCS512

(4-Wire)

8Pixels/M

Single Color

24VDC

12W/M

238LM

(3000K)

5050

3-IN-1 LED

56LEDs/m

Ra≥80

270°

12.5cm

(4.92in)

(7LEDs)

7Meters

(22.96ft)

14Meters

(45.93ft)

F21-24V-5050-56-DMX3SM-RGB

(5-wire DMX RGB)

DMX

(RS485)

UCS512

(5-Wire)

8Pixels/M

RGB

Full Color

24VDC

12W/M

R:29LM; G:91LM; B:16LM; RGB:125LM

5050

RGB

3-IN-1 LED

56LEDs/m

270°

12.5cm

(4.92in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.5ft)

F21-24V-5050-56-DMX3SM-XX

(5-wire DMX single color)

DMX

(RS485)

UCS512

(5-Wire)

8Pixels/M

Single Color

24VDC

12W/M

238LM

(3000K)

5050

3-IN-1 LED

56LEDs/m

Ra≥80

270°

12.5cm

(4.92in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.5ft)

F2124V-5050-70-DMX3-RGB

(5-wire DMX RGB)

DMX

(RS485)

UCS512

(5-Wire)

10Pixels/M

RGB

Full Color

24VDC

15W/M

R:34LM; G:88LM; B:17LM; RGB:128LM

5050

RGB

3-IN-1 LED

70LEDs/m

270°

10cm

(3.93in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.3ft)

F21-24V-5050-70-DMX3-XX

(5-wire DMX single color)

DMX

(RS485)

UCS512

(5-Wire)

10Pixels/M

Single Color

24VDC

15W/M

314LM

(3000K)

5050

3-IN-1 LED

70LEDs/m

270°

10cm

(3.93in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.3ft)

F21-24V-5050-56-DMX4SM

(5-wire DMX RGBW)

DMX

(RS485)

UCS512

(5-Wire)

8Pixels/M

RGBW

Full Color

24VDC

15W/M

R:24LM; G:82LM; B:17LM; RGBW:204LM; 5000K:80LM

5050

RGBW

4-IN-1 LED

56LEDs/m

Ra≥80

270°

12.5cm

(4.92in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.5ft)

F21-24V-5050-70-DMX3-RGBW

(5-wire DMX RGBW)

DMX

(RS485)

UCS512

(5-Wire)

10Pixels/M

RGBW

Full Color

24VDC

18W/M

R:29LM; G:94LM; B:17LM; RGBW:249LM; 4000K:113LM

5050

RGBW

4-IN-1 LED

70LEDs/m

Ra≥80

270°

10cm

(3.93in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.3ft)

F21-24V-5050-70-SPI3-RGB

SPI

UCS8903

10Pixels/M

RGB

Full Color

24VDC

15W/M

R:37LM; G:123LM; B:21LM; RGB:171LM

5050

RGB

3-IN-1 LED

70LEDs/m

270°

10cm

(3.93in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.3ft)

F21-24V-5050-70-SPI3-XX

SPI

UCS8903

10Pixels/M

Single Color

24VDC

15W/M

223LM

(3000K)

5050

RGB

3-IN-1 LED

70LEDs/m

270°

10cm

(3.93in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.3ft)

F21-24V-5050-56-SPI4-RGBW

SPI

UCS8904

8Pixels/M

RGBW

Full Color

24VDC

15W/M

R:29LM; G:89LM; B:16LM; RGBW:131LM; 5000K:100LM

5050

RGBW

4-IN-1

LED

56LEDs/m

Ra≥80

270°

12.5cm

(4.92in)

(7LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

F21-24V-5050-70-SPI4-RGBW

SPI

UCS8904

10Pixels/M

RGBW

Full Color

24VDC

15W/M

R:35LM; G:95LM; B:20LM; RGBW:250LM; 5000K:100LM

5050

RGBW

4-IN-1

LED

70LEDs/m

Ra≥80

270°

10cm

(3.93in)

(7LEDs)

8Meters

(26.25ft)

16Meters

(52.3ft)

Notes:
1.About light color:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.

FAQ:

Question: Can your neon LED flex be underwater use?

Answer: Yes, it can, but it CANNOT be used in sea water. When underwater use, please select mould injection type connector for neon LED flex, and install depth of underwater no more than 1.5meters. For more detail, please click here>>The importance notes about IP68 waterproof neon LED flex for underwater use.

IP68 Injection molded Connector for F15 Neon LED Strip Lights for Both Indoor and Outdoor Applications:

IP68 Waterproof mould injection connector for F15 neon LED flex

IP67 DIY Snap Connector for F15 Flexible LED Neon Strip:

IP67 DIY Snap connector for F15 neon LED flex

IP67 DIY Screws Connector for F15 LED Neon Flex:

IP67 DIY screws connector for F15 neon LED flex

Mounting Profile or Clip for F15 Neon Flexible LED Strip:

Mounting accessories for F15 neon LED flex
