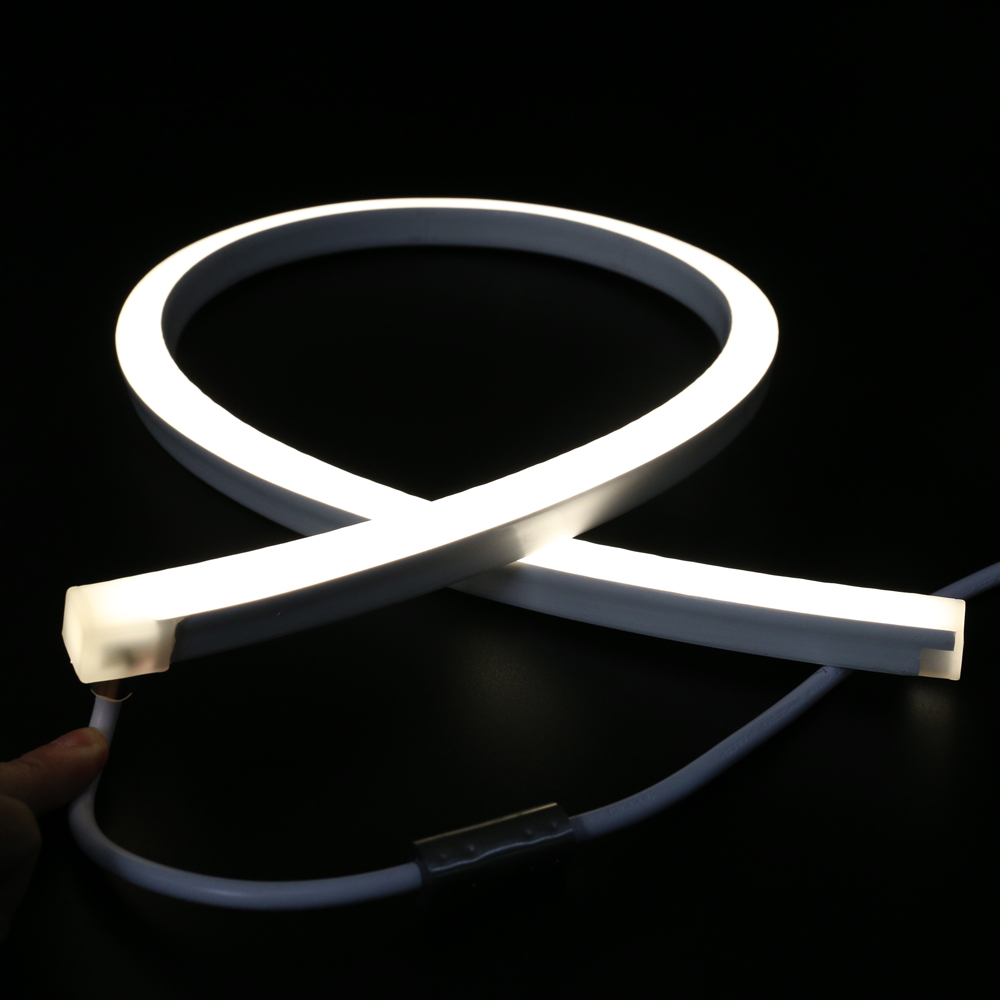

Features and Benefits:
▪ Small size: W16.5*H16.5mm, length can be customized made.
▪ Opal white diffuser with uniform and soft light output and dot free.
▪ Materials: standard PVC, optional silicone.
▪ Top view and vertical bending design and min dia. 120mm bending.
▪ Optional Light color: tunable white, RGB, RGBW (Single color available.)
▪ Control method: PWM (Optional: DMX, SPI, pixel chasing & addressable.)
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Snap or screws connector and IP68 Injection moulded connector.
▪ Single end or dual ends power feed cable for neon LED flex.
▪ Cable entry ways for options:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.
▪ Provides various smart accessories for installation to meet various applications.
▪ Max continuous length per run:8~30meters per run.
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2 meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.
Important Notes for neon LED flex when underwater use:
1. Please select injection moulded connector and the depth under water is <2 Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.
Technical Specifications for Tunable white (Dual color, color temperature adjustable) IP68 F16 Neon LED Strip Lights:
|
Model Number
(Color Type)
|
Working Mode | OptionalLight Color |
Working
Voltage
|
Power
(W/M)
|
Luminous Flux (LM/meter) |
LED
Type
|
LED Q'ty
(pcs/M)
|
CRI
(Ra)
|
Beam
Angle
|
Min
Cutting
Unit
|
Max Continuous Length | |
| one End Power Feed | Dual End Power Feed | |||||||||||
|
F16-24V-2835-120-TW
(Tunable White color)
|
CV,
ON/OFF,
Dimming
|
2200k+5000K,
3000K+5000K,
or Customized
|
24VDC | 15W/M | 372LM+410LM | 2835 | 120LEDs/m | Ra≥80 | 120° |
10cm
(3.93in)
(12LEDs)
|
10Meters
(32.8ft)
|
20Meters
(65.6ft)
|
Technical Specifications for Multi-color RGB and RGBW IP68 F16 Neon LED Flex (For safety consideration, please DO NOT use 48VDC version underwater use.):
Model Number
(Color Type)
Working Mode
Optional
Color
Working
Voltage
Power
(W/M)
Luminous Flux
(LM/meter)
LED
Type
LED Q'ty
(pcs/M)
CRI
(Ra)
Beam
Angle
Min
Cutting
Unit
Max
Continous Length
One End Power Feed
Double
Ends Power Feed
F16-24V-5050-60-RGB
(RGB Color)
PWM
RGB
Full Color
24VDC
12W/M
R:66LM;
G:172LM;
B:45LM
5050
RGB
3-IN-1 LED
60LEDs/m
/
120°
10cm
(3.93in)
(6LEDs)
10Meters
(32.8ft)
20Meters
(65.6ft)
F16-48V-5050-60-RGB
(RGB Color)
PWM
RGB
Full Color
48VDC
12W/M
R:66LM;
G:172LM;
B:45LM
5050
RGB
3-IN-1 LED
60LEDs/m
/
120°
25cm
(9.84in)
(15LEDs)
20Meters
(65.6ft)
40Meters
(131.2ft)
F16-24V-5050-72-RGB
(RGB Color)
PWM
RGB
Full Color
24VDC
13W/M
R:80LM;
G:205LM;
B:54LM
5050
RGB
3-IN-1 LED
72LEDs/m
/
120°
8.33cm
(3.28inch)
(6LEDs)
10Meters
(32.8ft)
20Meters
(65.6ft)
F16-24V-5050-60-RGBW
(RGBW Color)
PWM
RGBW
Full Color
24VDC
17W/M
R:49LM;
G:196LM: B:42LM; RGBW:514LM; 3000K:253LM
5050
RGBW
4-IN-1 LED
60LEDs/m
Ra≥80
(White)
120°
10cm
(3.93in)
(6LEDs)
8Meters
(26.25ft)
16Meters
(52.3ft)
F16-24V-5050-72-RGBW
(RGBW Color)
PWM
RGBW
Full Color
24VDC
17W/M
R:49LM;
G:196LM: B:42LM; RGBW:514LM; 3000K:253LM
5050
RGBW
4-IN-1 LED
72LEDs/m
Ra≥80
(White)
120°
8.33cm
(3.28inch)
(6LEDs)
8Meters
(26.25ft)
16Meters
(52.3ft)
Notes:
1.About light color:
The above technical parameters are for F16 tunable white, RGB and RGBW versions F16 Neon LED Strip Neon LED strip only, for details about single color, DMX or SPI versions neon LED flex, please click below links:
(1) Single F16 Neon LED Strip.
(2) DMX or SPI Dynamic Pixel F16 LED Neon Flex.
IP68 Injection moulded Connector for Neon LED flex:
Notes:
(1) Factory assembly ONLY;
(2)When the neon LED flex is underwater use, it is strongly advised to select injection moulded type connectors.
(3) Please view important notes about neon LED flex underwater use in this page>> FAQ for COMI Lighting IP68 Waterproof Neon LED flex
IP67 DIY Snap type or Screws Type Connector for Neon LED Strip:
Mounting Accessories for LED Neon Strip Light:
(1) Aluminum mounting channel and flex Aluminum mounting channel/profile/Clip;
(2) Transparent PC channel/profile or clip;
(3) 316 Stainless Steel mounting clip, stainless steel mounting channel.
