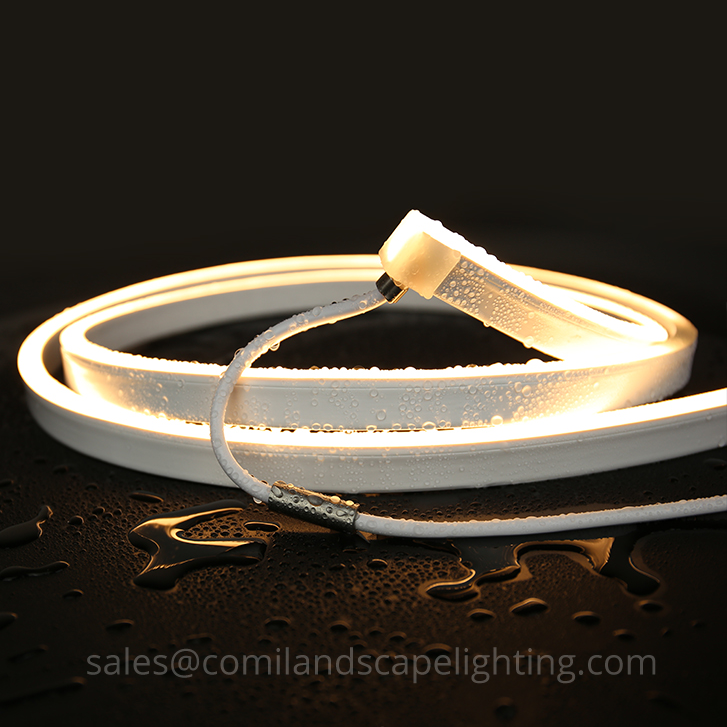

F15-DMX or F15-SPI is a series of dynamic neon LED flex with 8pixels/meter which is programmable, addressable and controllable by DMX or SPI controller, and this IP68 flexible dot free line neon LED flex with a W11.5×H21mm cross section. Opal polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gases and protection against abrasion. Horizontal bending only, with radius of 8mm excellent solution for indoor / outdoor organic facade accent lighting or decorative applications requiring IP67 even IP68 ingress.Fully controllable by DMX or SPI.
Features and Benefits:
▪ Working Voltage: 24VDC
▪ Power Consumption: 9W/M, 12W/m or 15W/m.
▪ Color: Dual color (Warm white+ Pure White), RGB, or RGBW
▪ Control methods: DMX or SPI for options(select one of them for the product).
(1) Signal Parallel Protected, DMX512 Signal Compatible,DMX Address Writable.
(2) 8pixel/meter, Each pixel of LED can be programmable or writable.
(3) By using our specialized control system, each output port support 512 pixels.
(4) Programmable to various color changing effects to cater to different applications
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ IP67 DIY screws type connector or IP68 mould injection type connectors.
▪ Single end or dual ends power cable:(1) Direct end, (2) bottom, or (3) side cable output.
▪ Provides various smart accessories for mounting and installation.
▪ Full encapsulated with IP68 Level and rating IK08.
▪ Standard 3 years warranty (5 years is available).
Important Note:
If the neon LED flex is underwater used, please note that:
1. Please select mould injection connector and the depth of underwater is <1.5Meters.
2. Used in swimming pool or other fresh water pool only, CAN NOT be used in sea water.
FAQ:
Question: Can your neon LED flex be underwater use?
Answer: Yes, it can, but it CANNOT be used in sea water. When underwater use, please select mould injection type connector for neon LED flex, and install depth of underwater no more than 1.5meters. For more detail, please click here>> The importance notes about IP68 waterproof neon LED flex for underwater use.
Technical Parameters:
Item Number
|
Control
Mode
|
Pixel Q'ty
(pcs/m)
|
Color
|
LED Type |
LED Q'ty
(pcs/m)
|
Working
Voltage
|
Typical
Power
|
Mini Cutting Unit |
Max Length
Single feed
|
Double Length
Single feed
|
IP & IK
Rating
|
F15RGB-DMX-12W
|
DMX | 8 | RGB | 5050 | 56 | 24VDC | 12W/M |
7pcs LED | 12.5cm |
7meters | 15meters | IP68 and IK08 |
F15DW-DMX-9W |
DMX | 8 |
Warm White
|
5050 |
56 | 24VDC | 9W/M |
7pcs LED | 12.5cm |
7meters | 15meters |
IP68 and IK08 |
F15RGBW-SPI-15W
|
SPI | 8 | RGBW | 5050 | 56 | 36VDC | 12W/M |
7pcs LED | 12.5cm |
7meters | 15meters |
IP68 and IK08 |
F15RGB-SPI-12W |
SPI
|
10 | RGB | 5050 | 70 | 24VDC |
12W/M |
7pcs LED | 10cm |
7meters | 20meters |
IP68 and IK08 |
Note: specifications are subjected to change without prior to notice.
Smart Accessories for F15A MONO Color Neon LED Flex:
Note: Please inquire us for more other models accessories and details about these accessories separately.
