The COMI LANDSCAPE LIGHTING B4B06-series IP68 LED underwater light made of SUS 316 stainless steel is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
Features and Benefits:
▪ Φ115xH32mm.
▪ Light source: 6x2W Osram or 3W RGB 3-in-1 LED.
▪ 24Vdc operating voltage.
▪ Power Consumption: 13W (Mono), 16.8W(RGB 3-in-1)
▪ Completely stainless steel SUS 316 housing & accessory
▪ Optional stainless steel bracket (Standard is NOT included, so please order separately).
▪ Standard non-dimmable, Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable support.
▪ IP68 waterproof,underwater installation in depth less than 1meter.
▪ Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪ 2 Years warranty.
Warning:
▪ This IP68 SUS 316 stainless steel luminaire must be installed underwater to prevent the light from burning up because of over-heating.

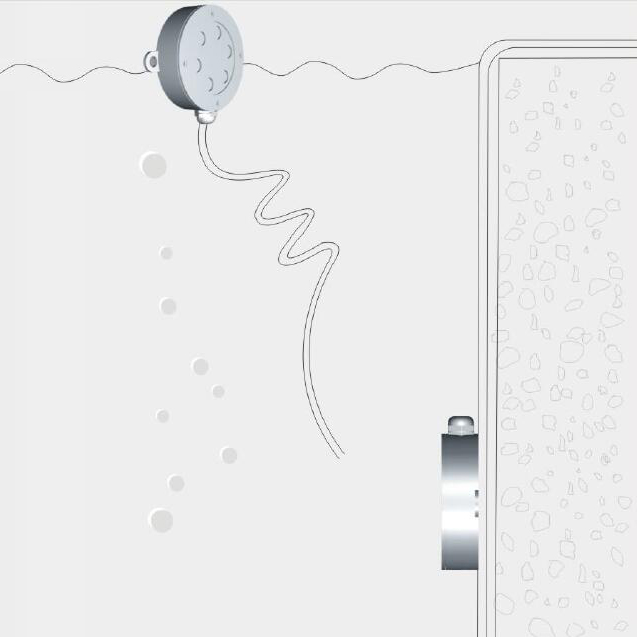

B4B0616 B4B0618 6x2W or 3W IP68 Wall Surface Mounting LED Underwater Light (with optional Bracket)
Completely stainless steel SUS 316 housing & accessory
Material Specifications
|
Housing & Front cover |
Molding shaped sus 316 stainless steel housing |
|
Waterproof seal |
EPDM gasket |
|
Window glass |
Step tempered glass. T=8mm |
| Lens |
Separate optical lens efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper with nickel -coated |
| PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
| Driver |
Constant current output ▪ Single color LED=2-circuit output ▪ RGB 3in1 LED=3-circuit output |
|
Application environment |
Temperature of water between -20℃~40℃ less than 1 meter depth. |
|
Electrical connection |
▪ 1x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single color) ▪ 1x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB) ▪ 1x cable 3meters H05RN-F 5x0.75mm² to open wires (for RGB DMX, Optional): 2 cores: Power +/-; 2 cores: DMX +/-; 1 core: Ground. |
| Bracket(Optional) | SUS 316 stainless steel, Standard NOT included(Order seperatately) |
|
Control Support(Optional) |
▪ Standard non-dimmable. ▪ Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable support. |
Technical Specification
|
Part Number
|
Light Source
|
CRI
(White color) |
Lens
|
Selected Lens
Degree (Θ1/2) |
Input Voltage
(Vdc) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
|
|
B4B0616
|
6×2W Osram
Single color |
Ra>80
|
B32
|
30
|
24VDC
|
542
|
13
|
Cool white=605
Warm white=520 |
08
|
|
B4B0618
|
6×3W
RGB 3-in-1 Full color |
-
|
B8
|
25
|
24VDC
|
R=200
G=250 B=250 |
16.8
|
426
|
08
|
Dimension (Units:mm)
