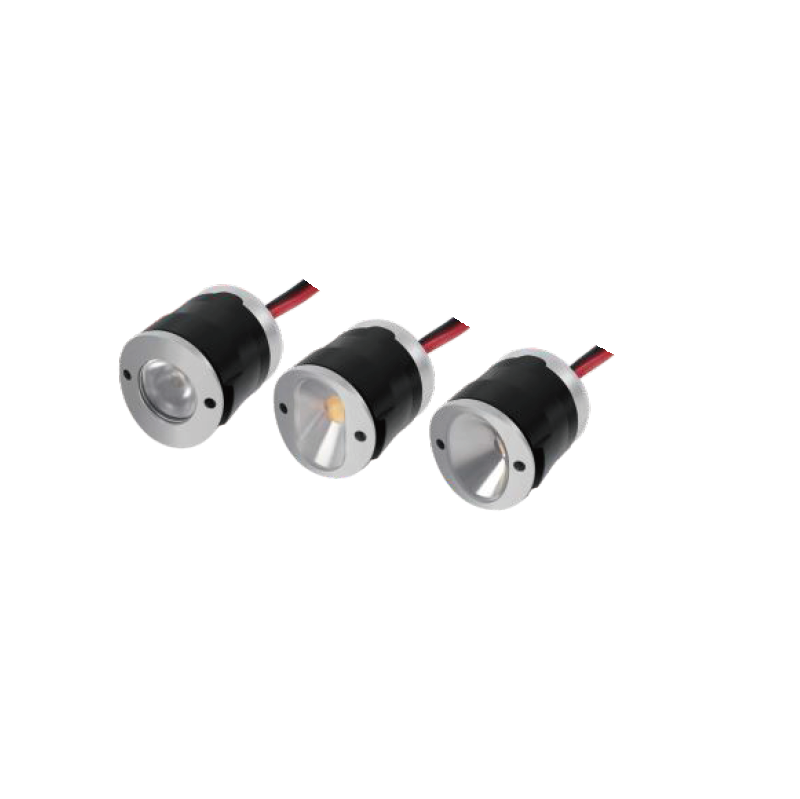

Our ultra-compact, IP67 rated spotlight is engineered for seamless integration into round stainless steel or aluminum handrails. Designed for both indoor and outdoor use, it delivers a smooth, pleasant wash of light for architectural accents in villas, parks, garages, and public spaces. With a robust 316 stainless steel housing and a variety of beam angles, it combines discreet design with powerful, reliable illumination.
Features and Benefits:

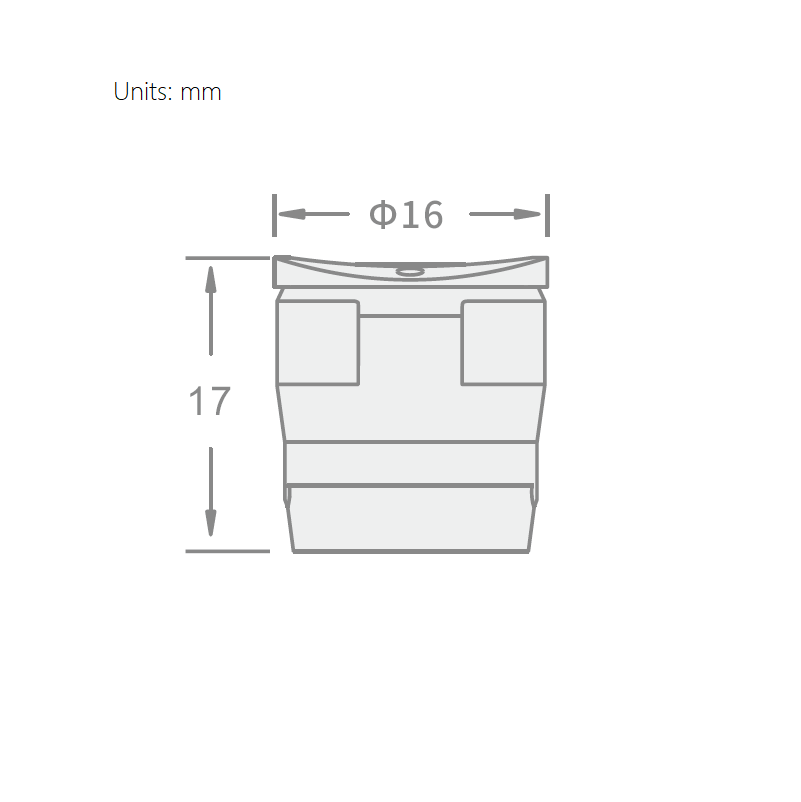

• Dimensions: Ø16xH17mm
• Arc front ring suitable for round handrail lighting.

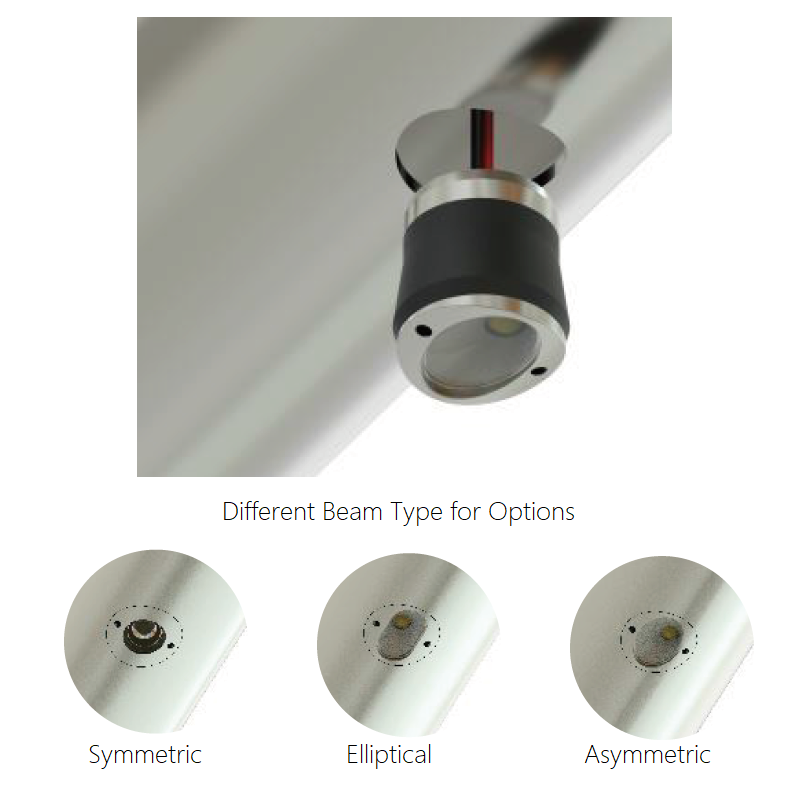

• Beam angle for options:
(1) Symmetrical:25°/35°/45°/65°;
(2) Asymmetrical 80°
(3) Elliptical: 65° x 90°
• Power and Working mode for options:
(1) Constant voltage 24VDC (or 12VDC) input and power 1.5W;
(2) Constant current 350mA 3VDC input and power 1W
• Light source:1piece 1~2W Cree LED.
• Luminous Flux: 100~155 LM.
• Color Temperature: 2700K~6500K, Green, Blue, Amber.
• CRI: Ra>80 (CRI90+ available).
• Materials: 316 Stainless steel housing and PMMA diffuser.
• Maximum connected power of total power no more than 100W.
• Easy recessed mounted and maintenance.
• Suitable for dia. Ø40~90mm and thickness 1.5~2.5mm round handrail.
• Cut out: Ø15mm M16 hole.
• Average life time: 30000 hours@70% lumen depreciation.
• Protection class: IP67 Waterproof.
• Ambient Temperature: -20℃ ~ +45℃.
• 2 Years warranty.
Technical Parameters for IP67 Recessed Handrail lights:
| Item Number |
Size
(mm)
|
Cut Out
(mm)
|
Control
Mode
|
Light Color | Light Source |
CRI
(Ra)
|
Beam Angle | Input |
Power
Consumption
(W)
|
Luminous Flux (LM) |
IP
Rate
|
| 08M1618-S-101-CC | Ø16×H17 | Ø15mm |
ON/OFF,
PWM Dimming
|
Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 |
Symmetrical
25°, 35°, 45°, 65°
|
3VDC,
Constan Current 350mA or 500mA
|
1W
(@350mA)
1.5W (@500mA)
|
Cool
white=155
Warm white=131
(@ 1.5W)
|
IP67 |
| 08M1618-A-101-CC | Ø16×H17 | Ø15mm |
ON/OFF,
PWM Dimming
|
Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Asymmetrical 80° |
3VDC,
Constan Current 350mA or 500mA
|
1W
(@350mA)
1.5W (@500mA)
|
Cool
white=148
Warm white=125
(@ 1.5W)
|
IP67 |
| 08M1618-E-101-CC | Ø16×H17 | Ø15mm |
ON/OFF,
PWM Dimming
|
Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Elliptical 65°×90° |
3VDC,
Constan Current 350mA or 500mA
|
1W
(@350mA)
1.5W (@500mA)
|
Cool
white=148
Warm white=125
(@ 1.5W)
|
IP67 |
| 08M1618-S-101-DC | Ø16×H17 | Ø15mm | ON/OFF | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 |
Symmetrical
25°, 35°, 45°, 65°
|
Constant Voltage 24VDC | 1.5W |
Cool
white=155
Warm white=131
(@ 1.5W)
|
IP67 |
| 08M1618-A-101-DC | Ø16×H17 | Ø15mm | ON/OFF | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Asymmetrical 80° | Constant Voltage 24VDC | 1.5W |
Cool
white=148
Warm white=125
(@ 1.5W)
|
IP67 |
| 08M1618-E-101-DC | Ø16×H17 | Ø15mm | ON/OFF | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Elliptical 65°×90° | Constant Voltage 24VDC | 1.5W |
Cool
white=148
Warm white=125
(@ 1.5W)
|
IP67 |
