IP68 flexible dot free neon LED flex F15A line with a W11.5×H21mm cross section. Opal polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gases and protection against abrasion. Horizontal bending only, with radius of 8mm excellent solution for indoor / outdoor organic facade accent lighting or decorative applications requiring IP67 even IP68 ingress. Fully dimmable with PWM,0/1-10V,DALI, DMX512.
Features and Benefits:
▪ Flat Shape Ivory White diffused PVC luminous surface.
▪ Continuous and uniform illumination, no LED dot or dark spot.
▪ Horizontal(side-to-side) bending only with radius of 80mm.
▪ Optional input Voltage 12VDC, 24VDC or 36VDC
▪ Power Consumption:5W/m, 12W/m or 15W/m.
▪ Constant Current IC built in optional.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Screws type and IP68 mould injection type connectors.
▪ Optional Single end or dual ends power cable for neon LED flex.

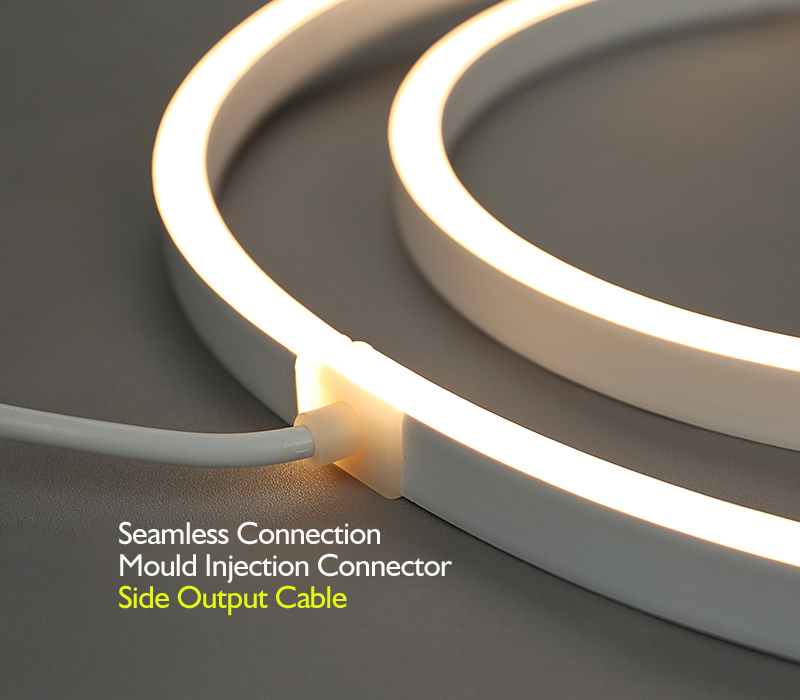

Cable output sides available: (1) Direct end, (2) bottom, or (3) side cable output.
▪ Continuous run length Up to 40meters.
▪ Provides various smart accessories for mounting and installation.
▪ Full encapsulated with IP68 Level and rating IK08.
▪ Standard 3 years warranty (5 years is available).
Important Note:
If the neon LED flex is underwater used, please note that:
1. Please select mould injection connector and the depth of underwater is <1.5Meters.
2. Used in swimming pool or other fresh water pool only, CAN NOT be used in sea water.
|
Model Number
(Color Type)
|
Working
Mode
|
Optional
Color/
Color Type
|
Working
Voltage
|
Power
(W/meter)
|
Luminous Flux (LM/meter) | LED Type |
LED Q'ty
(pcs/meter)
|
CRI
(Ra)
|
Beam
Angle
|
Min
Cutting Unit
|
Max Length Per run (Meters) | |
|
One End
Power Feed
|
Double Ends
Power Feed
|
|||||||||||
|
F15-24V-5050-60-XX
(Single Color)
|
CV,
ON/OFF,
Dimming
|
2200~6500K,
BL,GN,LY, PK
|
24VDC | 12W/M |
280~450LM
(White color)
|
5050
3-IN-1 LED
|
60LEDs/m | Ra≥80 | 120° |
10cm
(3.93in)
(6LEDs)
|
10Meters
(32.8ft)
|
20Meters
(65.6ft)
|
|
F15-24V-5050-60-XX
(Single Color)
|
CV,
ON/OFF,
Dimming
|
RD,AM,OR | 24VDC | 7.2W/M |
AM: 57/M;
RD:116LM
OR:22LM
|
5050
3-IN-1 LED
|
60LEDs/m | Ra≥80 | 120° |
10cm
(3.93in)
(6LEDs)
|
15Meters
(49.2ft)
|
30Meters
(98.4ft)
|
|
F15-48V-5050-60-XX
(Single Color)
|
CV,
ON/OFF,
Dimming
|
2200~6500K,
BL,GN,LY, PK
|
48VDC | 10W/M |
430~480LM
(White color)
|
5050
3-IN-1 LED
|
60LEDs/m | Ra≥80 | 120° |
25cm
(9.84in)
(15LEDs)
|
20Meters
(65.6ft)
|
40Meters
(131.2ft)
|
|
F15-24V-5050-72-XX
(Single Color)
|
CV,
ON/OFF,
Dimming
|
2200~6500K,
BL,GN,LY, PK
|
24VDC | 13W/M |
270~420LM
(White color)
|
5050
3-IN-1 LED
|
72LEDs/m | Ra≥80 | 120° |
8.33cm (3.28in)
(6LED)
|
8Meters
(26.25ft)
|
16Meters
(52.5ft)
|
|
F15-24V-3528-72-XX
(Single Color)
|
CV,
ON/OFF,
Dimming
|
2200~6500K,
RD, BL,GN, AM, PK, OR
|
24VDC | 5W/M |
120~160LM
(White color)
|
3528 | 72LEDs/m | Ra≥80 | 120° |
16.67cm (6.6in)
(6LED)
|
15Meters
(49.2ft)
|
30Meters
(98.4ft)
|
|
F15-12V-3528-72-XX
(Single Color)
|
CV,
ON/OFF,
Dimming
|
2200~6500K,
RD, BL,GN, AM, PK, OR
|
12VDC | 5W/M |
120~150LM
(White color)
|
3528 | 72LEDs/m | Ra≥80 | 120° |
8.33cm (3.28in)
(6LED)
|
7Meters
(22.96ft)
|
14Meters
(45.9ft)
|
|
F15-24V-2835-72-CC-XX
(Constant Current & Single Color)
|
CC,
ON/OFF,
Dimming
|
2200~6500K,
BL,GN,LY, PK
|
24VDC | 10W/M |
240~300LM
(White color)
|
2835 | 72LEDs/m | Ra≥80 | 120° |
16.67cm (6.6in)
(6LED)
|
15Meters
(49.2ft)
|
30Meters
(98.4ft)
|
|
F15-24V-2835-120-TW
(Tunable White color)
|
CV,
ON/OFF,
Dimming
|
2200k+5000K,
3000K+5000K,
or Customized
|
24VDC | 15W/M | 220LM+240LM | 2835 | 120LEDs/m | Ra≥80 | 120° |
10cm
(3.93in)
(12LEDs)
|
10Meters
(32.8ft)
|
20Meters
(65.6ft)
|
Notes:
1.About light color for neon LED strip:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.
The above technical parameters are for F15 single color and tunable white (Dual color or Color temperature adjustable) Neon LED flex only, for details about RGB, RGBW, DMX and SPI versions F15 Neon LED Strip, please click below links:
(1) RGB and RGBW F15 Neon LED Strip.
(2) DMX or SPI Dynamic Pixel or Addressable or Programmable F15 LED Neon Flex.
FAQ:
Question: Can your neon LED flex be underwater use?Answer: Yes, it can, but it CANNOT be used in sea water. When underwater use, please select mould injection type connector for neon LED flex, and install depth of underwater no more than 1.5meters. For more detail, please click here>>The importance notes about IP68 waterproof neon LED flex for underwater use.
