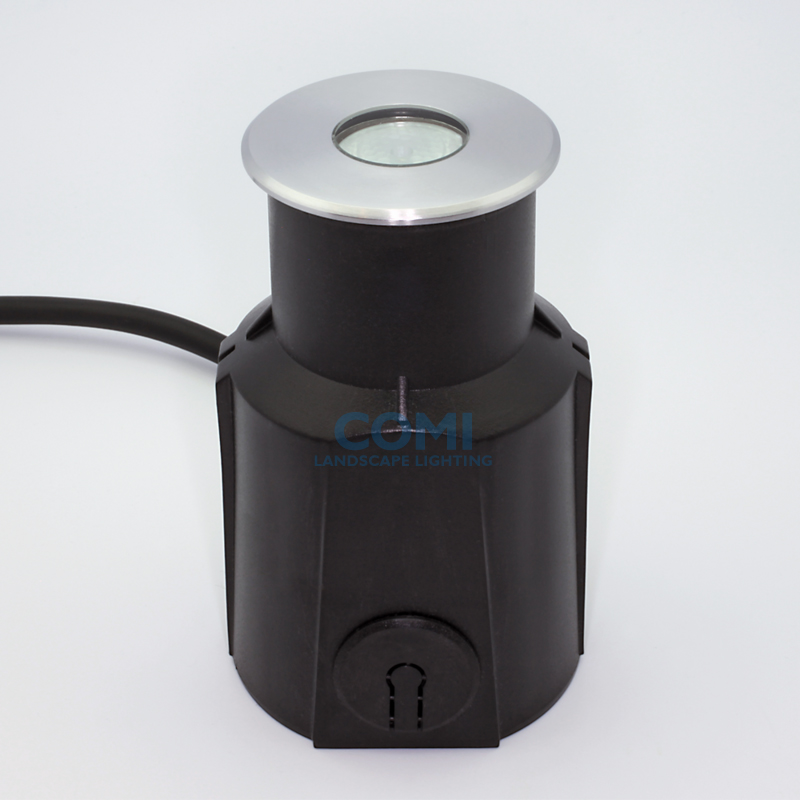

B4A-series Small Type Recessed LED Underwater Pool Lights

COMI Landscape Lighting B4A-series IP68 LED pool light is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.


Features and Benefits:

▪ Small type design.
▪  Utilizes 1pcs 2W Osram or 3W RGB 3-in-1 LED as light source.
▪  24VDC low voltage input
▪  Made of SUS316 stainless steel completely for housing and accessories.
▪  Symmetrical light output.
▪  Overheat sensor inside(Optional).
▪  IP68 waterproof,underwater installation in depth less than 1meter.
▪  Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪  Standard non-dimmable.(Optional dimmable support with DALI, 1~10V, PWM. )
▪  PVC Mounting sleeve included.
▪  2 Years warranty.

warning for COMI Landscape lighting's underwater pool lightWarning:
▪  Water must be allowed to go inside and outside sleeve freely without leaking from the other side.
▪  This IP68 luminaire made of SUS316 stainless steel,so DO NOT operate the lighting fixture out of water for over 15 minutes (cooling).

led fountain light CE, ROHS, RGB

B4A-Series  Single color or RGB color IP68 Small Type Recessed LED Pool Light Made of SUS316 Stainless Steel


Material Specifications:

Front cover & Housing
Molding shaped stainless steel SUS316#
Glass
Step tempered glass.T=7mm
Gasket
EPDM gasket
Lens Optical lens,efficiency≥85%
PCB Excellent heat conductivity aluminum.coefficient of heat Conductivity≥2.0w/mk
LED Driver Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
Power Cable H07RN-F 21.0mm2,L=3.0m(for single color)
H07RN-F 4X0.75mm2, L=3.0m(for RGB)
Application environment
Temperature of water between -20˚C~40˚C, less than 1 meter depth.
Mounting Sleeve PVC Mounting Sleeve (Included)

Dimmable Support
(Optional)

Optional dimmable function support with DALI, 0~10V, PWM



Technical Specifications:

Item No. Light Source Lens
Selected Lens
 degree (Θ1/2)
Input Voltage
(v)
Typical Operating
 Current(mA)
Typical Power
Consumption(w)
Typical
luminance(lm)
IK Rate
B4A0158
1X2W
OSRAM
B32 25 24VDC 110 2.6

Cool white=174
 Warm white=139

06
B4A0106
1X3W
RGB 3-in-1
Full Color
B32
30 24VDC
R=38
G=53
B=54
3.5 56 06
C4A0158
1X2W
Osram
C8 45/35 24VDC 110 2.6 Cool white=143
 Warm white=115
06





Dimensional Drawing(Units:mm):


Lens:


lens for b4xc0457 b4xc0418 led pool lights


Asymmetrical Light Output:


Asymmetrical Light Output LED pool Light effect

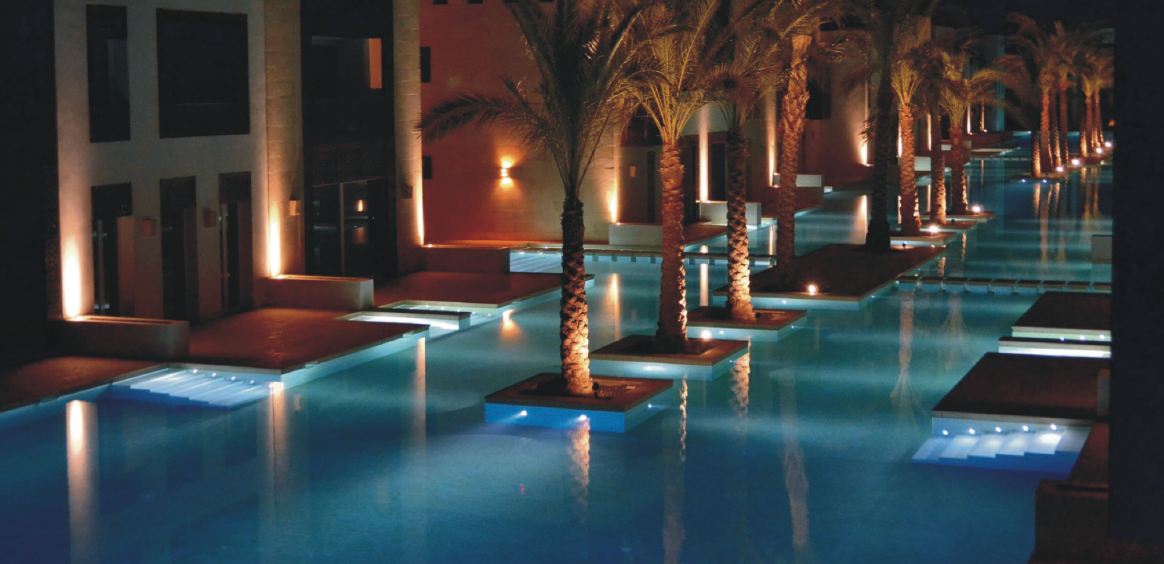

Application:
