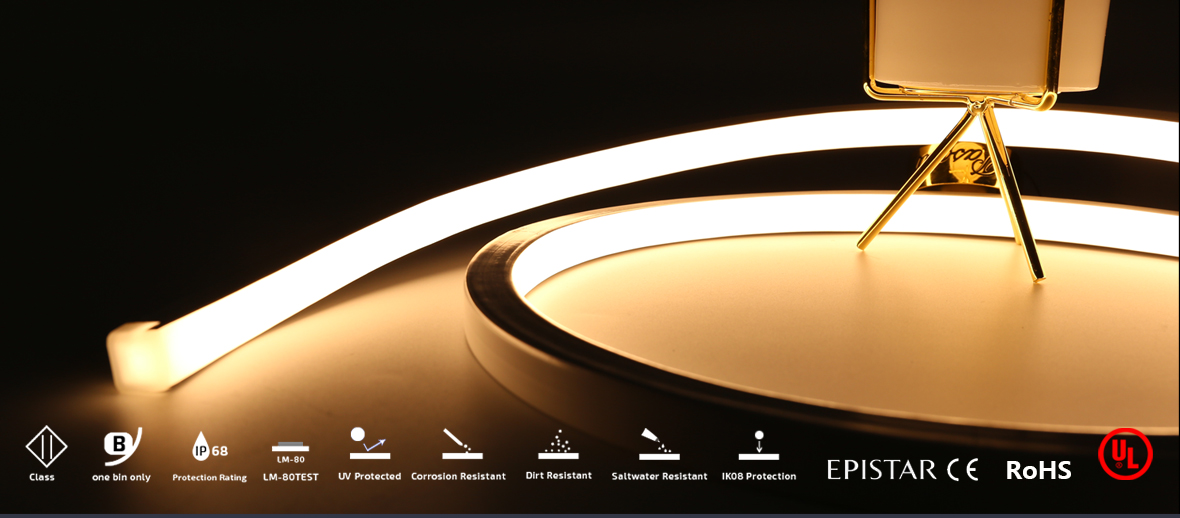

F16A 24VDC 10W or 15W Top View Neon LED Flex IP68 Waterproof

IP68 flexible top view neon LED flex F16A line with a W16.5×H16.5mm cross section. Opal polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gases and protection against abrasion. Vertical bending only, with radius of 8mm excellent solution for indoor / outdoor organic facade accent lighting or decorative applications requiring IP67 even IP68 ingress. Fully dimmable with PWM,0/1-10V,DALI, DMX512.

Features and Benefits:
▪ Flat Shape Ivory White diffused PVC luminous surface.
▪ Continuous and uniform illumination, no LED dot or dark spot.
▪ Vertical(upward-to-downward) bending only with radius of 8mm.
▪ Optional input Voltage 12VDC, 24VDC or 36VDC
▪ Power Consumption:10W/m or 15W/m.
▪ Constant Current IC built in optional.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Screws type and IP68 mould injection type connectors.
▪ Optional Single end or dual ends power cable for neon LED flex.
  Cable output sides available(1) Direct end, (2) bottom, or (3) side cable output.
▪ Continuous run length Up to 30meters(for constant current IC driving only).
▪ Provides various smart accessories for mounting and installation.
▪ Full encapsulated with IP68 Level and rating IK08.
▪ Standard 3 years warranty (5 years is available).

Important Notes for neon LED flex when underwater use:
1. Please select mould injection connector and the depth of underwater is <1.5Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.

Top view emitting IP68 neon LED strip CE ROHS dimmable UL outdoor use

F16 Mono series neon LED flex


Technical Specifications:

Item Number
Light Source

Available CCT
Or Color

Working
Voltage

Typical
Power

Mini Cutting
Length

Max Length
(Single End Feed)
Max Length
(Dual Ends Feed)
IP Rate &
IK Rate

F16-24V-2835-120-15W-CC

(Constant Current IC Built-in)

 2835 SMD LED
120pcs/Meter

2200~6500K
GN,BL

24VDC
15W/M
6LEDs |
1.98"/5cm
49.2'/15m
98.43'/30m
IP68
IK08
F16-24V-3528-144-10W
3528 SMD LED
144pcs/Meter
2200~6500K
RD,GN,BL,YL,LY
24VDC
10W/M
12LEDs |
2.5"/8.33cm
33'/10m
65.62'/20m
IP68
IK08
F16-24V-3528-120-9W
3528 SMD LED
120pcs/Meter
2200~6500K
RD,GN,BL,YL,LY
24VDC
9W/M
12LEDs |
3.93"/10cm

33'/10m
65.62'/20m
IP68
IK08
F16-24V-2835-120-10W
2835 SMD LED
120pcs/Meter
2200~6500K
RD,GN,BL,YL,AM
24VDC
10W/M
12LEDs |
3.93"/10cm

33'/10m
65.62'/20m
IP68
IK08

Notes:
1. RD(Red,620-630nm), BL(Blue,465-475nm), GN(Green,520-530nm), YL(Yellow,587-590nm), AM(Amber,604-610nm), LY( Lemon Yellow, 570-578nm ).
2. Specifications are subjected to change without prior to notice.
